Browser RUM Deployment & Configuration

vuSmartMaps Configuration: Enabling Browser RUM

Enabling Browser RUM O11ySource

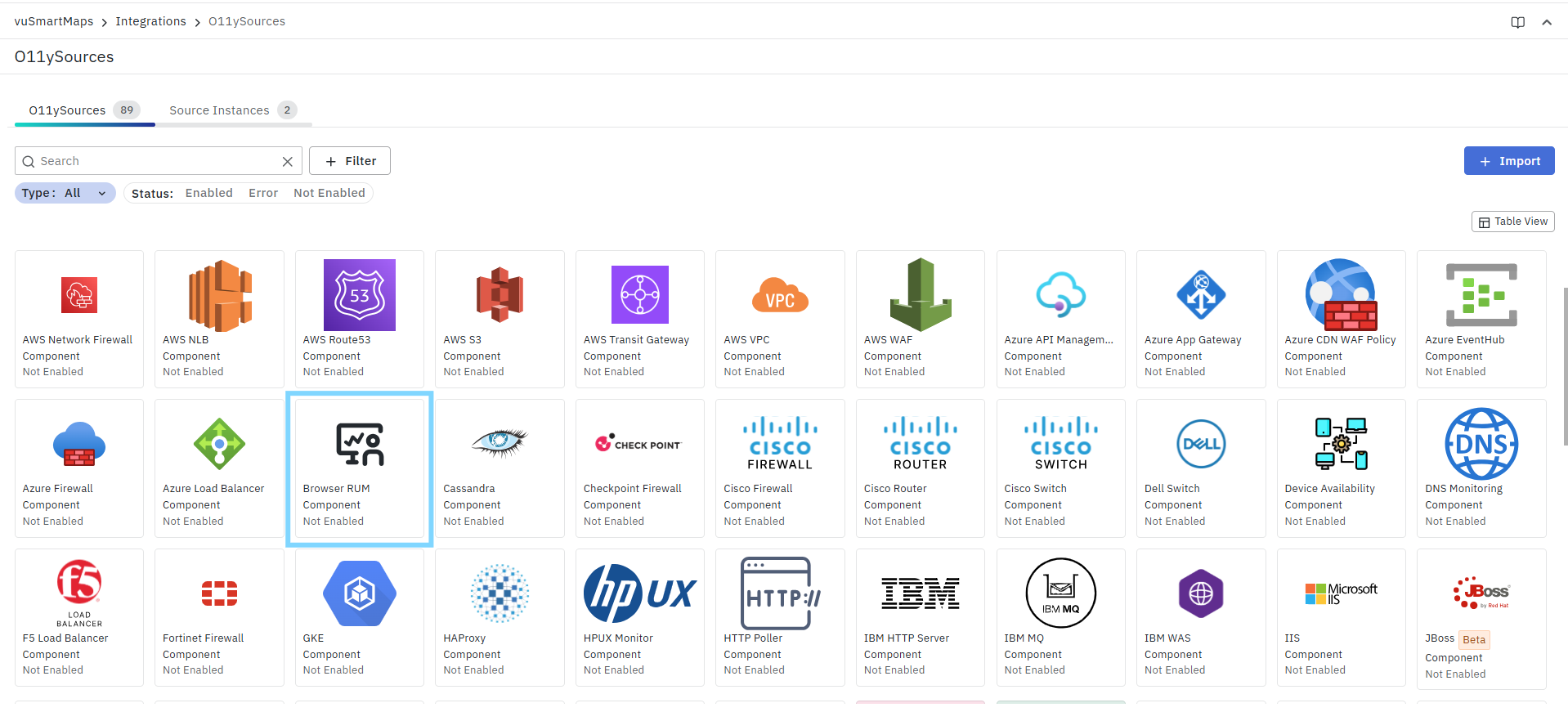

Navigate to O11ySources:
- vuSmartMaps O11ySources can be accessed by navigating from the left navigation menu (Data Ingestion > O11ySources).
Locate Browser RUM O11ySource on the landing page.

Time to flip the switch! Let’s get your Browser RUM up and running by enabling the right O11ySources. Just a few clicks to unlock real user visibility.

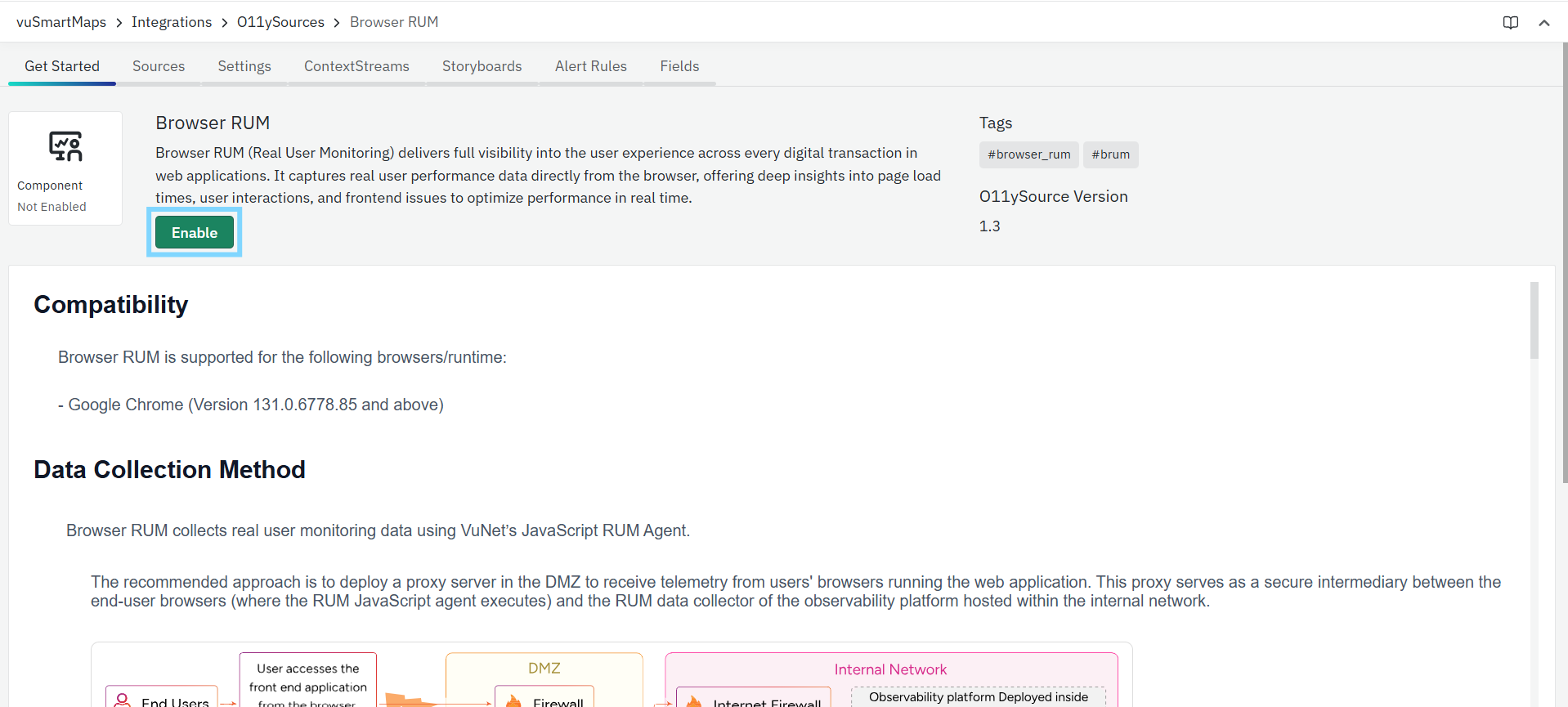

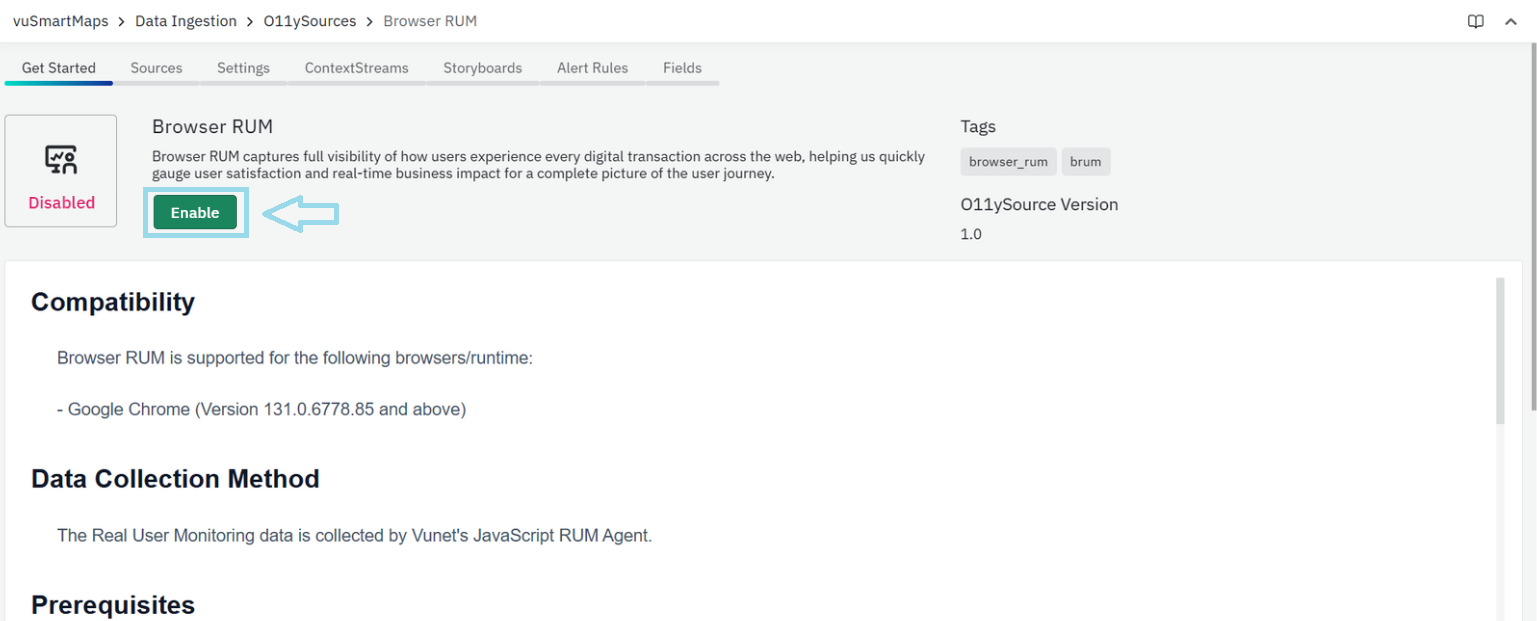

Enable Browser RUM O11ySources:
- Click the Enable button to activate Browser RUM O11ySource.

Data Collection and Processing

Browser RUM collects real user monitoring data through VuNet’s JavaScript RUM agent, which runs within users' web browsers. For secure data collection, it is recommended to deploy a proxy server in the DMZ (Demilitarized Zone). This proxy acts as a secure intermediary, forwarding telemetry data from end-user browsers to the internal RUM data collector hosted within the observability platform. This setup ensures both data security and reliable monitoring without exposing internal systems directly to the internet. The RUM script can be downloaded from the following URL: https://cdn.vunet.ai/rum/vunet-rum-v0.1.23.js. Save the file as vunet-rum.js.

Prerequisites

To configure the data source, you need the following parameters:

Parameter	Description
Application Name	The name of the application you want to monitor.
SSL	Select Yes to enable TLS (SSL) for secure data transmission. Select No if secure communication is not required.
Traces Sampling Percentage	Specify a value between 0 and 100 to control the percentage of trace data collected by the RUM agent: - 0%: No trace data will be collected. - 100%: All trace data will be collected. - 1–99%: A random sampling mechanism will collect traces accordingly.
Session Replay Sampling Percentage	Specify a value between 0 and 100 to control how many sessions are recorded for replay: - 0%: Session replay is disabled. - 100%: All sessions will be recorded. - 1–99%: Sessions are selected using a normalized sampling algorithm (explained below).

Session Replay Sampling Logic

When a sampling value between 1 and 99 is configured, the RUM agent uses the following logic to decide whether to record a session for replay:

percentage(base + replayPercentage * RandomJitter) < replayPercentage

base: A numeric value derived by hashing the session ID.
RandomJitter: A randomized factor that varies by ±25% to avoid skewed sampling.
percentage(): A normalization function that ensures the result falls between 0 and 100. If the final computed value is less than the configured replayPercentage, the session is selected for replay.

note

Values above 100% are capped at 100.
Values below 0% are raised to 0.

Disabling Options

To disable trace collection, set Traces Sampling Percentage to 0.
To disable session replay, set Session Replay Sampling Percentage to 0.
To disable both, set both values to 0.

Firewall Requirements

To ensure seamless data collection, the following firewall configurations must be in place:

Allow inbound traffic on TCP port 443 (HTTPS) to the proxy server.
Allow inbound traffic on TCP port 80 (HTTP) for automatic redirection to HTTPS (optional).
Allow outbound traffic from the proxy server to the OTEL Collector on port 4319 (or a custom port, depending on the environment).
Allow connection from proxy server to vuInterface node of vuSmartMaps on port 443

Certificate

Browser-to-Proxy SSL Certificate
- Used to establish a secure connection between the browser and the proxy server.
- Ensures that data transmitted from the JavaScript RUM agent running in the browser is encrypted and trusted.
OTEL Collector Certificate
- Required for secure communication between the proxy server and the OpenTelemetry (OTEL) collector.
- Ensures encrypted and authenticated data transfer from the proxy to the OTEL collector.

Configuring Data Sources

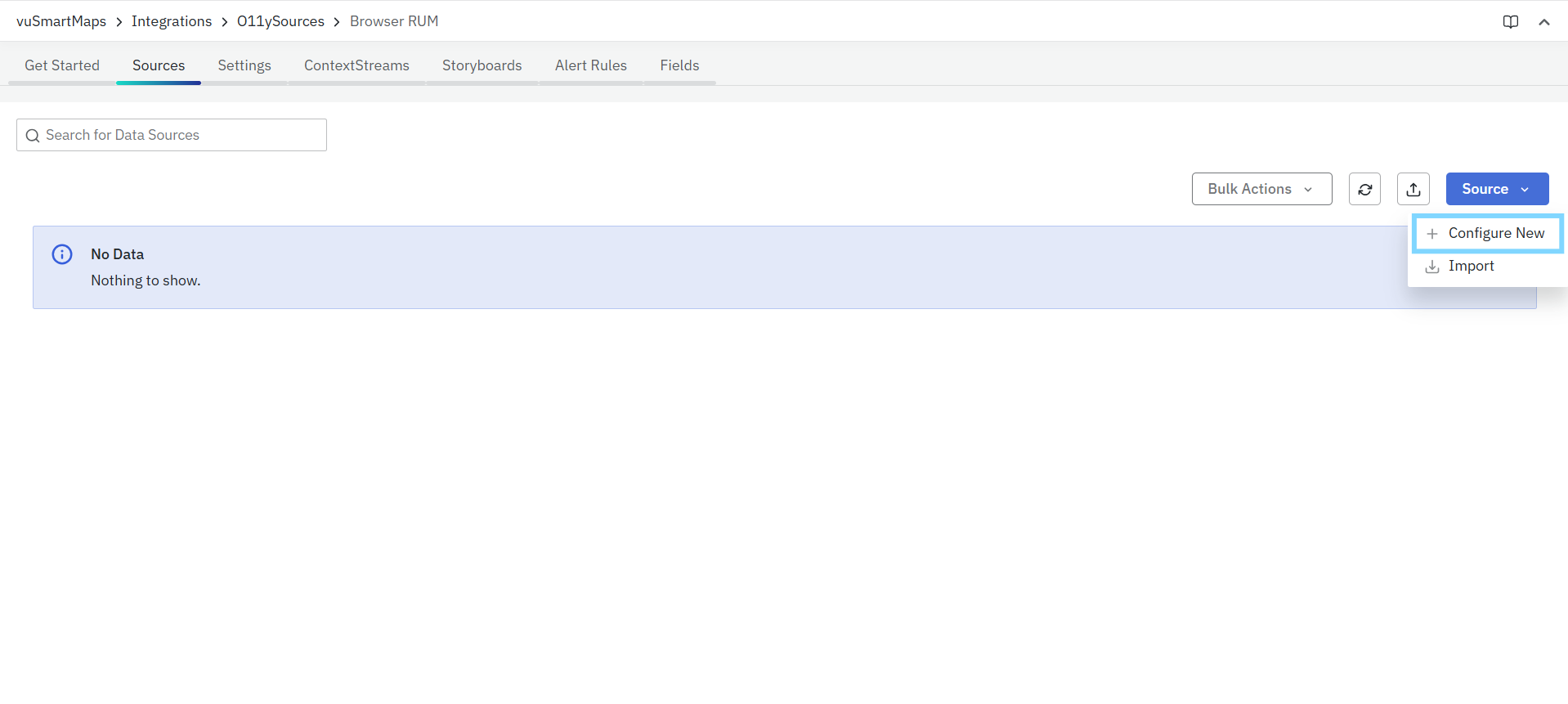

Navigate to the Sources tab and click the + button to add new services to be monitored.

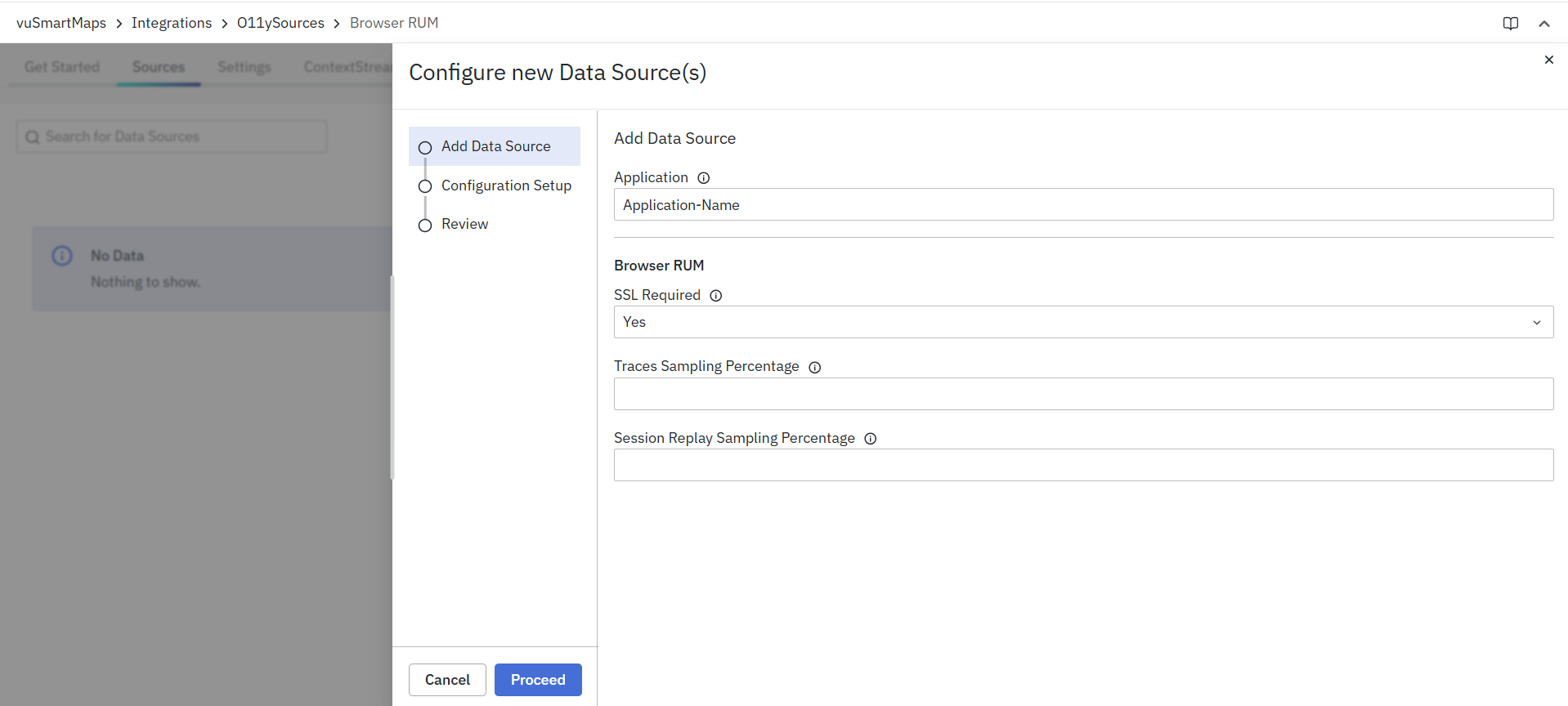

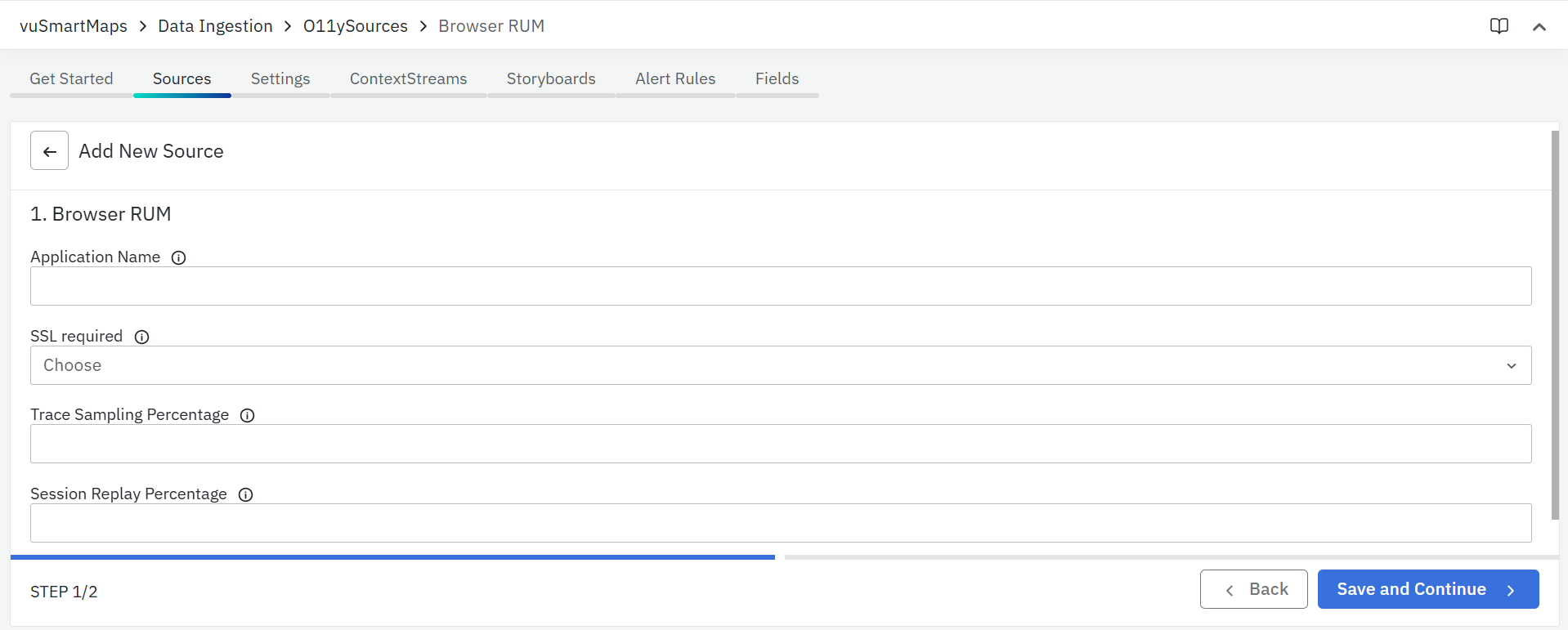

Fill up the Following Details in the Wizard:
- Applications Group: Select or enter the name of the application group to which the monitored application belongs.
- SSL Required: Choose Yes to enable TLS (SSL) for secure communication, or No if it's not required.
- Traces Sampling Percentage – Specify the percentage of trace data to be collected.
- Session Replay Percentage – Specify the percentage of sessions to be recorded for replay.

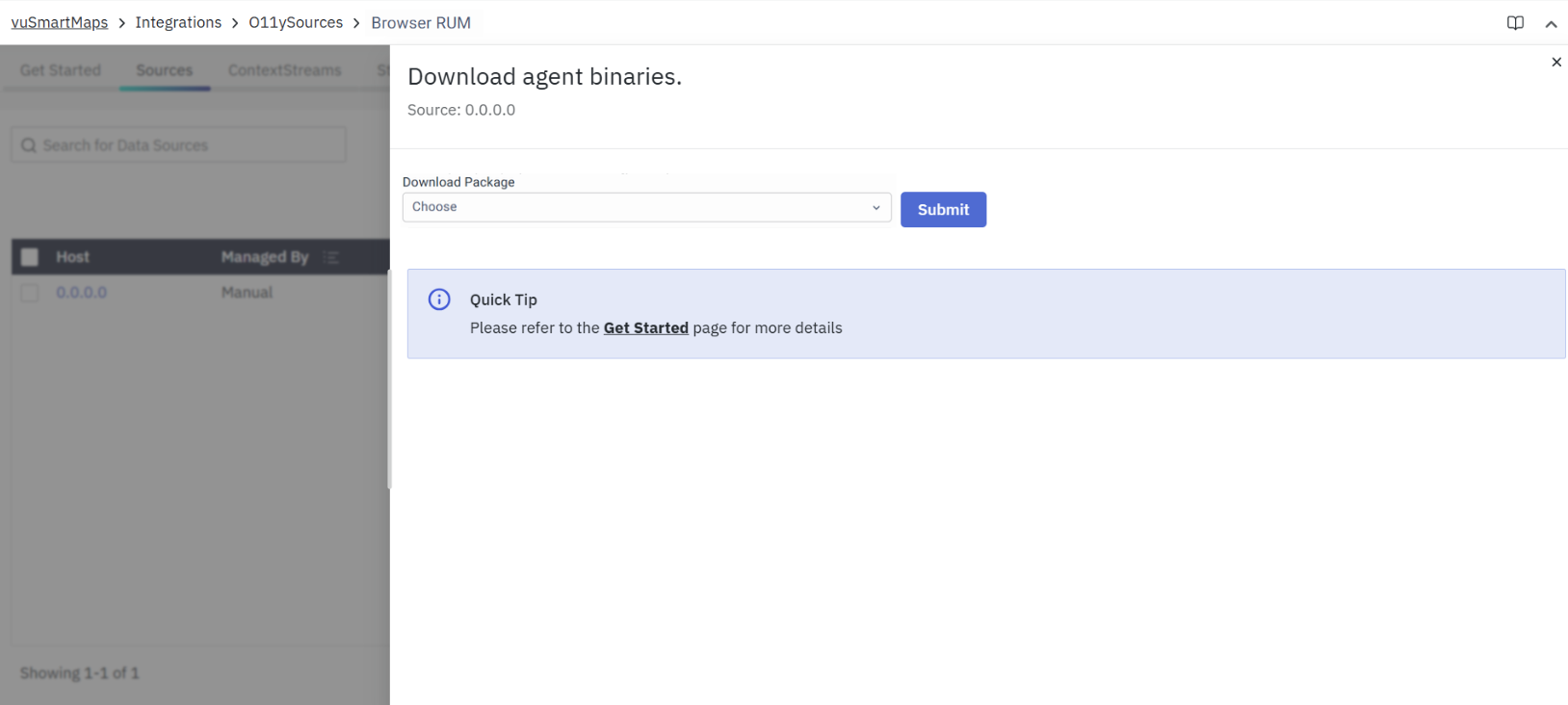

Download the client instrumentation package from the agent configuration wizard.

Follow the instructions provided in the Client Side Browser RUM Instrumentation.

Client Side Browser RUM Instrumentation

Instrumenting JavaScript Applications

This section guides you through tracing JavaScript applications using Browser RUM.

Prerequisite

Before you begin, ensure the following:

Configure your web server as a reverse proxy to serve the RUM script and forward trace data, or use a dedicated proxy server to receive and relay RUM traces.
The RUM script should send data to the proxy at the following endpoint (e.g., https://<proxy_address>/rum/v1/traces), which then forwards it to the OpenTelemetry Collector (e.g., https://<RUM-collector-host>:4319/v1/traces).
Instrumentation requires JavaScript to be added to HTML pages by editing or updating the pages to include the <script> tag.
The method for editing or updating HTML files depends on the technology used in the web application (e.g., JavaScript, React, Angular, PHP, ASP.NET, etc.). There are two cases:
- For JavaScript-based applications (JS, Angular, React):
  - If it is a Single Page Application (SPA), the main HTML file (typically index.html) must be edited to include the <script> tag.
  - For Multi-page Applications, all main HTML pages of the application must be updated with the <script> tag.
- For server-side rendered applications (e.g., PHP, JSP, ASP.NET):
  - HTML files are generated dynamically from the server.
  - In this case, the <script> tag should be added by the server-side code into the dynamically generated HTML files (typically by modifying files like header.php, _Layout.chtml, etc.).
The application and environment must allow externally loaded or inline scripts to be executed, since the RUM SDK is loaded as a script.

Host / Virtual Machine (VM)

Copy the RUM Script
- Add the file /public/js/vunet-rum.js (absolute path) to your application’s codebase, preferably inside the js folder.

Just plug this script into your page and boom—you’re capturing every click, scroll, and slow load in real time.

Add the RUM Script to the Page Header
- Insert the following script in the <head> section of your HTML file:

<script>
(function (w, s, d, r, e, n) {
(w[s] = w[s] || {
readyListeners: [],
onReady: function (e) {
w[s].readyListeners.push(e);
},
}),
((e = d.createElement('script')).async = 1),
(e.src = r),(n = d.getElementsByTagName('script')[0]).parentNode.insertBefore(e, n);
})( window, 'vunetRum', document, '/public/js/vunet-rum.js');
window.vunetRum.onReady(function () {
window.vunetRum.initialize({
collectionSourceUrl: "<VUNET_TELEMETRY_RECEIVER_URL>", //mention the urlwhere the otel collector is running
serviceName: '<SERVICE_NAME>',// mention the service name of the application
applicationName: '<APPLICATION_NAME>', // mention the name of the application
decideApiEndpoint: "<DECIDE_API_ENDPOINT_URL>",
collectErrors: true,
dropShortTracesMs: 100,//drop traces shorter than 100 milliseconds
authorizationToken: "ef7ae8b1fa097092a66a56882fd8366cfbdb1b6848ae0d529a21a68a94e245020"
ignoreUrls:[/\/rum\/v1\/.*/i, /\/vusmartmaps\/.*/i]

  });
});
</script>

Update the Variables

Replace the placeholder values in the script as follows:
- VUNET_TELEMETRY_RECEIVER_URL: URL of the reverse proxy
  - Example: "http://10.1.1.1/rum/v1/traces"
- SERVICE_NAME: Service name for the application
  - Example: 'vubank-frontend'
- APPLICATION_NAME: Name of the application
  - Example: 'IBMB'
- decideApiEndpoint: URL of reverse proxy with path as “/vuSmartMaps/api/rum”. The proxy will forward this request to Cairo to invoke Decide API
  - Example: "https://10.1.1.1/vuSmartMaps/api/rum/"
- dropShortTracesMs: Filters out short, low-value traces
  - If the total duration of a trace (from its root span’s start to its end) is less than the value of dropShortTracesMs, the entire trace will be discarded.
  - All spans within such short traces will also be excluded.
  - This is useful for filtering out fast, low-impact user interactions.
  - Value is specified in milliseconds.
    - Example: dropShortTracesMs: 100
- authorizationToken: Token used for authenticating requests
- Generate a token on a Linux host using:
```
openssl rand -hex 32
```
- Include this token in the RUM script on the application side.
- The same token must also be configured on the proxy server to validate incoming requests.
Restart the Web Server
- Apply the changes by restarting your web server.

Cloud Machine Setup (Using CDN)

For cloud environments, the JavaScript file can be loaded directly from VuNet's Content Delivery Network (CDN).

Insert the Script in the HTML <head> Section

Use the following script:

<script>
(function (w, s, d, r, e, n) {
(w[s] = w[s] || {
readyListeners: [],
onReady: function (e) {
w[s].readyListeners.push(e);
},
}),
((e = d.createElement('script')).async = 1),
(e.src = r),(n = d.getElementsByTagName('script')[0]).parentNode.insertBefore(e, n);
})( window, 'vunetRum', document, 'https://cdn.vunet.ai/rum/vunet-rum-v0.1.23.js');
window.vunetRum.onReady(function () {
window.vunetRum.initialize({
collectionSourceUrl: "<VUNET_TELEMETRY_RECEIVER_URL>", //mention the urlwhere the otel collector is running
serviceName: '<SERVICE_NAME>',// mention the service name of the application
applicationName: '<APPLICATION_NAME>', // mention the name of the application
decideApiEndpoint: "<DECIDE_API_ENDPOINT_URL>",
collectErrors: true,
dropShortTracesMs: 100,//drop traces shorter than 100 milliseconds
authorizationToken: "ef7ae8b1fa097092a66a56882fd8366cfbdb1b6848ae0d529a21a68a94e245020"
ignoreUrls:[/\/rum\/v1\/.*/i, /\/vusmartmaps\/.*/i]
  });
});
</script>

Update the Variables

Replace the placeholders in the script:
- VUNET_TELEMETRY_RECEIVER_URL: URL of the reverse proxy
  - Example: "http://10.1.1.1/rum/v1/traces"
- SERVICE_NAME: The name of the service
  - Example: 'vubank-frontend'
- APPLICATION_NAME: The name of the application
  - Example: 'IBMB'
- decideApiEndpoint: URL of reverse proxy with path as /vuSmartMaps/api/rum, The proxy will forward this request to Cairo to invoke Decide API
  - Example: http://10.1.1.1/vuSmartMaps/api/rum/
- dropShortTracesMs: Filters out short, low-value traces
  - If the total duration of a trace (from its root span’s start to its end) is less than the value of dropShortTracesMs, the entire trace will be discarded.
  - All spans within such short traces will also be excluded.
  - This is useful for filtering out fast, low-impact user interactions.
  - Value is specified in milliseconds.
    - Example: dropShortTracesMs: 1
- authorizationToken: Token used for authenticating requests
  - Generate a token on a Linux host using:

openssl rand -hex 32

Include this token in the RUM script on the application side.
The same token must also be configured on the proxy server to validate incoming requests.

note

Ensure that the CSP is configured to allow loading files from our CDN (http://cdn.vunet.ai).
If the JS file is loaded correctly, then it should function as expected. If there are difficulties in receiving data, verify that the JS file is properly loaded and that the collectionSourceUrl is correct and accessible.

Container

For containerized environments, follow these steps:

Add the RUM script to your page header as shown above.
Rebuild the Docker container with the updated codebase to ensure the script is included.

Kubernetes

For Kubernetes environments, follow these steps:

Add the RUM script to your page header as shown above.
Rebuild the Docker container and deploy it in your Kubernetes environment to include the updated script.

CORS Prerequisites

To ensure successful communication between the application and the proxy server, the following CORS-related requirements must be met:

Restrict Origins
- Only trusted application domains should be allowed to send data.
- The proxy server must be configured to whitelist specific origins using the following headers:

Access-Control-Allow-Origin: https://<App-name.com>
Access-Control-Allow-Methods: POST, OPTIONS
Access-Control-Allow-Headers: Content-Type, Authorization, logcategory

Replace https://<App-name.com> with the actual domain(s) of your frontend application.

Security Mechanism Compatibility
- If the application uses security mechanisms such as:
  - CSP (Content Security Policy)
  - Firewalls
- Then these must be configured to allow communication with the proxy.
- The CSP headers must permit the proxy domain in the connect-src directive. For example:

Content-Security-Policy: script-src 'self'; connect-src 'self' https://<proxy_address>;

Ensure the proxy’s hostname (e.g., https://otelproxy.com) is included in the connect-src directive.

Preflight Request Support
- Browsers automatically send OPTIONS (preflight) requests before POST requests to check CORS permissions.
- The proxy must correctly handle these preflight requests.
- Ensure your NGINX or proxy server is configured to return appropriate CORS headers for OPTIONS requests.

Additional Configuration Details

RUM Proxy Server Configuration Guide

This section outlines the prerequisites and configuration guidelines for setting up a Reverse Proxy for Real User Monitoring (RUM) data, in alignment with organizational standards. While NGINX is used as an example in this guide, it is recommended to use the proxy server approved by your organization.

The configuration includes support for:

SSL termination
Cross-Origin Resource Sharing (CORS)
API key authentication
Backend proxying to an internal RUM collector

Prerequisites

A Linux-based server with NGINX installed
NGINX version >= 1.18
SSL certificate and key (PEM format)
Domain/subdomain pointing to your NGINX proxy server
Approved Origin Domains (used in CORS)
Firewall rules allowing port 443 (HTTPS) (External Port)
Firewall rules allowing port 4319/4320 from Proxy to RUM OTEL Collector

Configuration Summary

SSL Configuration

Ensure your NGINX server has a valid SSL certificate.
Place your certificate and key files in the appropriate directory, typically:

/etc/ssl/certs/proxy-cert.crt
/etc/ssl/private/proxy-key.key

CORS Mapping

Allows requests only from specified origins.
Use the following configuration for handling CORS:

# For handling Cors
map $http_origin $cors_allow_origin {
    default "";
    "~^https?://myapp\.domain\.com$" "$http_origin";
    "~^https?://192.\.168\.1\.1$" "$http_origin";
}

Add the following line inside the specific location block:

add_header 'Access-Control-Allow-Origin' "$cors_allow_origin" always;

API Key Mapping

Maps a valid Authorization header to a flag used for access control.
Add the following configuration:

map $http_authorization $is_valid_api_key {
    default 0;
    "ef7ae8b1fa097092a66a56882fd8366cfbdb1b6848ae0d529a21a68a94e245020" 1;
}

To generate the key using openssl:

$ openssl rand -hex 32
ef7ae8b1fa097092a66a56882fd8366cfbdb1b6848ae0d529a21a68a94e245020

HTTPS Server Block

Handles SSL, routes requests, and enforces security headers.

server {
    listen 443 ssl;

    # Replace with actual domain or IP address
    server_name myproxydomain.com;

    ssl_certificate     /etc/ssl/certs/proxy-cert.crt;
    ssl_certificate_key /etc/ssl/private/proxy-key.key;
    ssl_protocols       TLSv1.2 TLSv1.3;
    ssl_ciphers         HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;

    add_header Strict-Transport-Security "max-age=63072000; includeSubDomains" always;
    add_header X-Frame-Options "SAMEORIGIN" always;
    add_header X-Content-Type-Options "nosniff" always;
    add_header Referrer-Policy "strict-origin-when-cross-origin" always;

    location /vuSmartMaps/api/rum {
        proxy_pass https://vuSmartMapsIP;
        proxy_set_header Host vuSmartMapsIP;
    }

    location /rum/ {

        if ($request_method = 'OPTIONS') {
            add_header 'Access-Control-Allow-Origin' "$cors_allow_origin" always;
            add_header 'Access-Control-Allow-Credentials' 'true' always;
            add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS' always;
            add_header 'Access-Control-Allow-Headers' 'Content-Type, Authorization, logcategory' always;
            return 204;
        }

        if ($is_valid_api_key = 0) {
            return 401 "Unauthorized";
        }

        add_header 'Access-Control-Allow-Origin' "$cors_allow_origin" always;
        add_header 'Access-Control-Allow-Credentials' 'true' always;
        add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS' always;
        add_header 'Access-Control-Allow-Headers' 'Content-Type, Authorization, logcategory' always;

        proxy_pass http://rum-backend/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_buffering off;
    }
}

HTTP Redirect Block

Redirects HTTP to HTTPS.

server {
    listen 80;
    server_name otelcollector.com;
    return 301 https://$host$request_uri;
}

Upstream Block

Defines backend servers for the RUM collector.

upstream rum-backend {
    # server 172.16.124.188:4319;  # Example sandbox backend
}

Consolidated NGINX Configuration

Create the below configuration under:

/etc/nginx/conf.d/rumsslproxy.conf

note

This file will define reverse proxy and CORS logic for RUM service integration. Replace all highlighted placeholders with appropriate values to be updated as per the end state environment

# =========================
# Map CORS-Allowed Origins
# =========================
# This maps the Origin header to itself only if it matches approved domains,
# which are then used in the 'Access-Control-Allow-Origin' header.

map $http_origin $cors_allow_origin {
    default "";
    "~^https?://<ALLOWED_ORIGIN>$"  "$http_origin";
    #######EXAMPLE####################################
    ##"~^https?://myapp\.com$"        "$http_origin";
    ##"~^https?://192\.168\.1\.1$"    "$http_origin";
}

# =============================
# Map Authorization API Key
# =============================
# This maps the incoming Authorization header to a flag (1 if valid, 0 otherwise),
# enabling simple conditional checks in the server block.

map $http_authorization $is_valid_api_key {
    default 0;
    "ef7ae8b1fa097092a66a56882fd8366cfbdb1b6848ae0d529a21a68a94e245020" 1;
}

# ===========================
# HTTPS Server for RUM Proxy
# ===========================
server {
    listen 443 ssl;
    # --------------------------
    # Domain name of the proxy for example rum.vunetsystems.com
    # --------------------------
    Server_name <SERVER_NAME>;

    # SSL certificate and private key
    ssl_certificate     <SSL_CERT_PATH>;
    ssl_certificate_key <SSL_CERT_KEY_PATH>;

    ###EXAMPLE##########################################
    # ssl_certificate     /etc/ssl/certs/vusmartmaps.crt;
    # ssl_certificate_key /etc/ssl/private/vusmartmaps.key;

    # Enforce modern TLS protocols and secure cipher suites
    ssl_protocols       TLSv1.2 TLSv1.3;
    ssl_ciphers         HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;

    # Security headers for HTTPS best practices
    add_header Strict-Transport-Security "max-age=63072000; includeSubDomains" always;
    add_header X-Frame-Options "SAMEORIGIN" always;
    add_header X-Content-Type-Options "nosniff" always;
    add_header Referrer-Policy "strict-origin-when-cross-origin" always;

    # ============================================================
    # Proxy to vuSmartMaps decide API EndPoint. Specify vuSmartMapsIP
    # ============================================================
    # Basic reverse proxy for internal API calls
    location /vuSmartMaps/api/rum {
        proxy_pass https://vuSmartMapsIP;
        proxy_set_header Host vuSmartMapsIP;
    }

    # ===============================
    # Main RUM Beacon Proxy Endpoint
    # ===============================
    location /rum/ {

        # --------------------------
        # Handle CORS Preflight
        # --------------------------
        # If this is an OPTIONS request, return allowed headers & methods
        if ($request_method = 'OPTIONS') {
            add_header 'Access-Control-Allow-Origin'      "$cors_allow_origin" always;
            add_header 'Access-Control-Allow-Credentials' 'true' always;
            add_header 'Access-Control-Allow-Methods'     'GET, POST, OPTIONS' always;
            add_header 'Access-Control-Allow-Headers'     'Content-Type, Authorization, logcategory' always;
            return 204;
        }

        # --------------------------
        # Enforce API Key Auth
        # --------------------------
        # If API key is not valid, reject the request
        if ($is_valid_api_key = 0) {
            return 401 "Unauthorized";
        }

        # --------------------------
        # Add CORS headers to real requests
        # --------------------------
        add_header 'Access-Control-Allow-Origin'      "$cors_allow_origin" always;
        add_header 'Access-Control-Allow-Credentials' 'true' always;
        add_header 'Access-Control-Allow-Methods'     'GET, POST, OPTIONS' always;
        add_header 'Access-Control-Allow-Headers'     'Content-Type, Authorization, logcategory' always;

        # --------------------------
        # Proxy to internal RUM collector use http or https based on requirement
        # --------------------------

        ###for http://
        proxy_pass http://rum-backend/;
        ### for https://
        #proxy_pass https://rum-backend/;

        # Optional SSL configuration for backend (commented out)
        # proxy_ssl_name rum.vunetsystems.com;
        # proxy_ssl_server_name on;
        # proxy_ssl_verify on;
        # proxy_ssl_verify_depth 2;
        # proxy_ssl_trusted_certificate /etc/nginx/certs/ca_chain.pem;

        # Forward client headers to backend
        proxy_set_header Host                $host;
        proxy_set_header X-Real-IP           $remote_addr;
        proxy_set_header X-Forwarded-For     $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto   $scheme;

        # Disable buffering for low-latency small POSTs
        proxy_buffering off;
    }
}

# ================================
# Redirect HTTP to HTTPS
# ================================
server {
    listen 80;
    server_name otelcollector.com;

    # Redirect all HTTP requests to HTTPS
    return 301 https://$host$request_uri;
}

# ================================
# Define Backend RUM Collector
# ================================
# You can define one or more backend servers here.
# Useful for load balancing or failover.
upstream rum-backend {
    # Example backend:
    # Replace this with RUM Otel Collector IP
    server <OTEL_COLL_IP>:4319
     ### EXAMPLE
    ##server 172.16.124.188:4319;
 }

Validate and Restart NGINX: Use the following commands to validate the NGINX configuration and restart the server:

$ sudo nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
$ sudo service nginx restart

Proxy Sizing

To handle 40,000 RUM events per second with 1 KB payloads through an NGINX proxy, a single well-tuned node with 8 vCPU, 16 GB RAM, 100 GB SSD (if logging is enabled) would be required. For high availability and redundancy, deploy 2 such nodes behind an external load balancer.

Input Parameters

Events per Second (EPS): 40,000
Payload Size per Event: 2 KB

Per Node Sizing Recommendation

Resource	Size
vCPU	8
RAM	16
Disk SSD	100 GB if logging is enabled

vuSmartMaps Configuration: Enabling Browser RUM​

Enabling Browser RUM O11ySource​

Data Collection and Processing​

Prerequisites​

Firewall Requirements​

Certificate​

Configuring Data Sources​

Client Side Browser RUM Instrumentation​

Instrumenting JavaScript Applications​

Prerequisite​

Host / Virtual Machine (VM)​

Cloud Machine Setup (Using CDN)​

Container​

Kubernetes​

CORS Prerequisites​

Additional Configuration Details​

RUM Proxy Server Configuration Guide​

Prerequisites​

Configuration Summary​

SSL Configuration​

CORS Mapping​

API Key Mapping​

HTTPS Server Block​

HTTP Redirect Block​

Upstream Block​

Consolidated NGINX Configuration​

Proxy Sizing​

Input Parameters​

Per Node Sizing Recommendation​

vuSmartMaps Configuration: Enabling Browser RUM

Enabling Browser RUM O11ySource

Data Collection and Processing

Prerequisites

Firewall Requirements

Certificate

Configuring Data Sources

Client Side Browser RUM Instrumentation

Instrumenting JavaScript Applications

Prerequisite

Host / Virtual Machine (VM)

Cloud Machine Setup (Using CDN)

Container

Kubernetes

CORS Prerequisites

Additional Configuration Details

RUM Proxy Server Configuration Guide

Prerequisites

Configuration Summary

SSL Configuration

CORS Mapping

API Key Mapping

HTTPS Server Block

HTTP Redirect Block

Upstream Block

Consolidated NGINX Configuration

Proxy Sizing

Input Parameters

Per Node Sizing Recommendation
