Line Chart

Overview

A Line Chart is a visualization used to display how a value changes over a continuous sequence, such as time. In this chart:

• The horizontal axis (X-axis) shows progression (for example, time, dates, or intervals).
• The vertical axis (Y-axis) shows the metric value.

The data points are connected using lines, making it easy to see trends, patterns, and changes over time. Similar visualizations are commonly seen in smartphone battery usage graphs or car mileage tracking displays, where users observe how values change over a period of time. In the same way, Line Charts help users understand operational and business trends more effectively. Line Charts are commonly used for time-series data or any data where the sequence matters. They are ideal for representing continuous data and comparing trends across multiple series.

Line charts are especially powerful for visualizing trends, patterns, and comparisons—turning raw data into actionable insights and helping your team make smarter decisions!

Why This Feature Is Useful

In banking and payment systems, teams constantly monitor metrics that change over time.

For example:

• Transaction latency
• Error rate
• CPU or system usage
• Transaction volume trends

A Line Chart helps users:

• Quickly identify increasing or decreasing trends
• Detect abnormal spikes or drops
• Compare multiple systems or services in one view

Example Scenario

A payment operations team wants to monitor transaction latency across systems.

They create a Line Chart panel:

• X-axis shows time (last 1 hour)
• Y-axis shows latency values

Multiple lines represent different systems.

By observing the chart:

• They identify a spike in latency for one system
• Use tooltip and legend values to pinpoint when the issue started
• Take action before it impacts more transactions

When to Use This Feature

Use a Line Chart when:

• You want to track changes over time.
• You need to monitor continuous data.
• You want to compare trends across multiple series.
• You want to visualize time-based metrics like:
  • Latency
  • Throughput
  • Error counts Avoid using Line Charts when:
• Data is not sequential.
• You only need distribution (use Pie Chart instead).

Comprehensive Understanding

You can configure a Line Chart within a dashboard panel. The configuration screen contains the following sections:

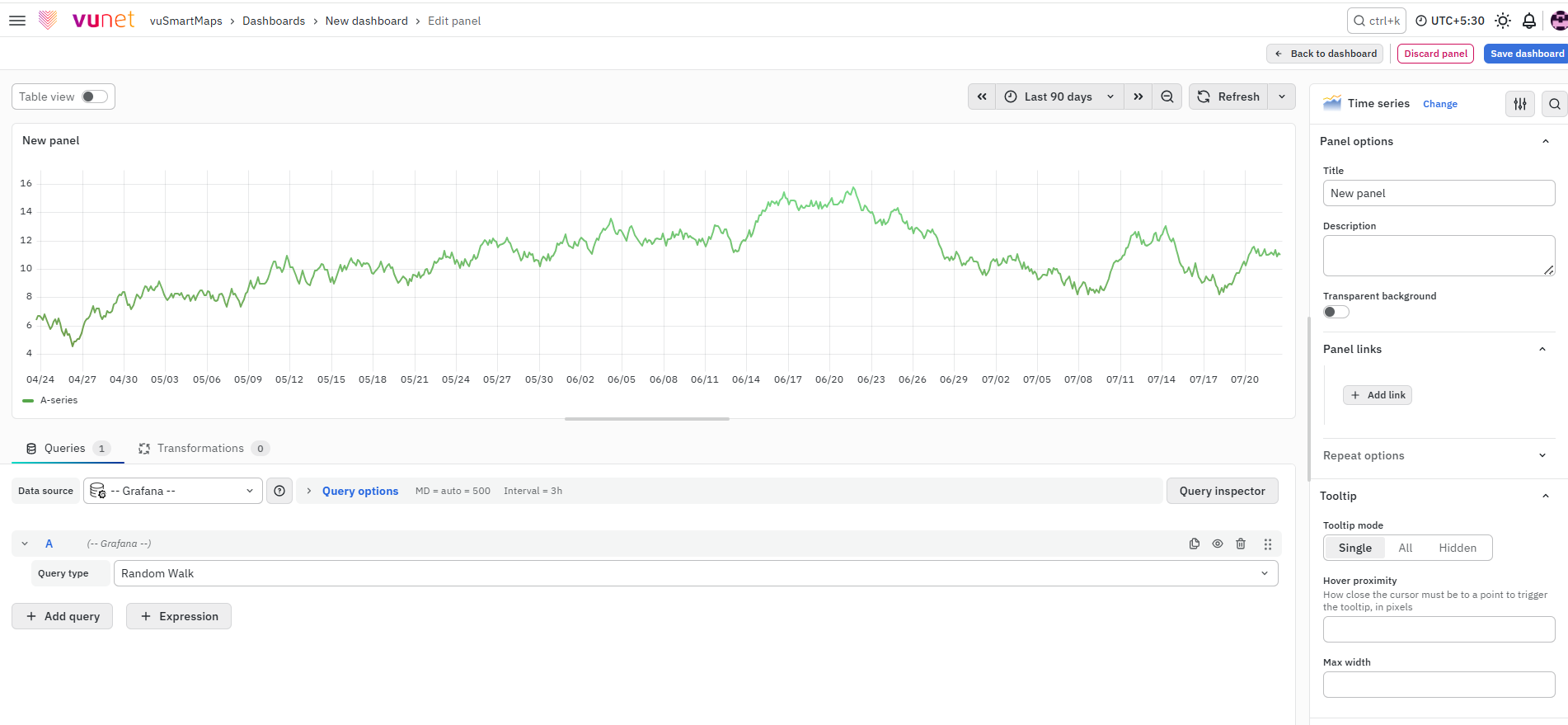

Visualization

On the right side of the screen, select Time series as the visualization type.

Once selected:

• The panel switches to a Line Chart view.
• Data is displayed as connected lines.
• The X-axis represents progression (typically time).
• The Y-axis represents metric values.

This step is mandatory. If another visualization is selected, the panel will not display as a Line Chart.

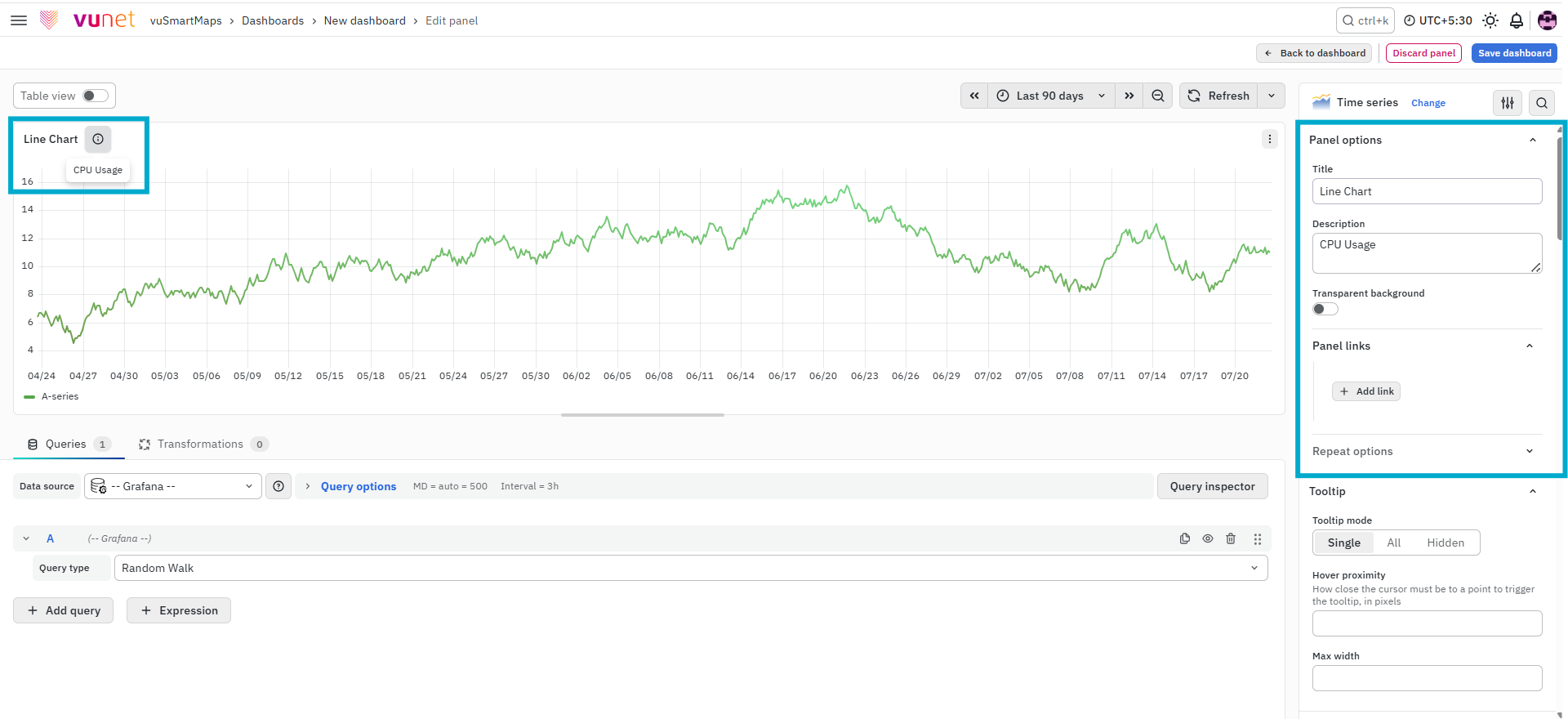

Panel Options

This section is used to define the basic details of the panel.

• Title – Used to identify the panel on the dashboard.
• Description – Provides context about what the chart represents. The description is available in the top-left corner of the panel and can be viewed by hovering over the information (i) icon.

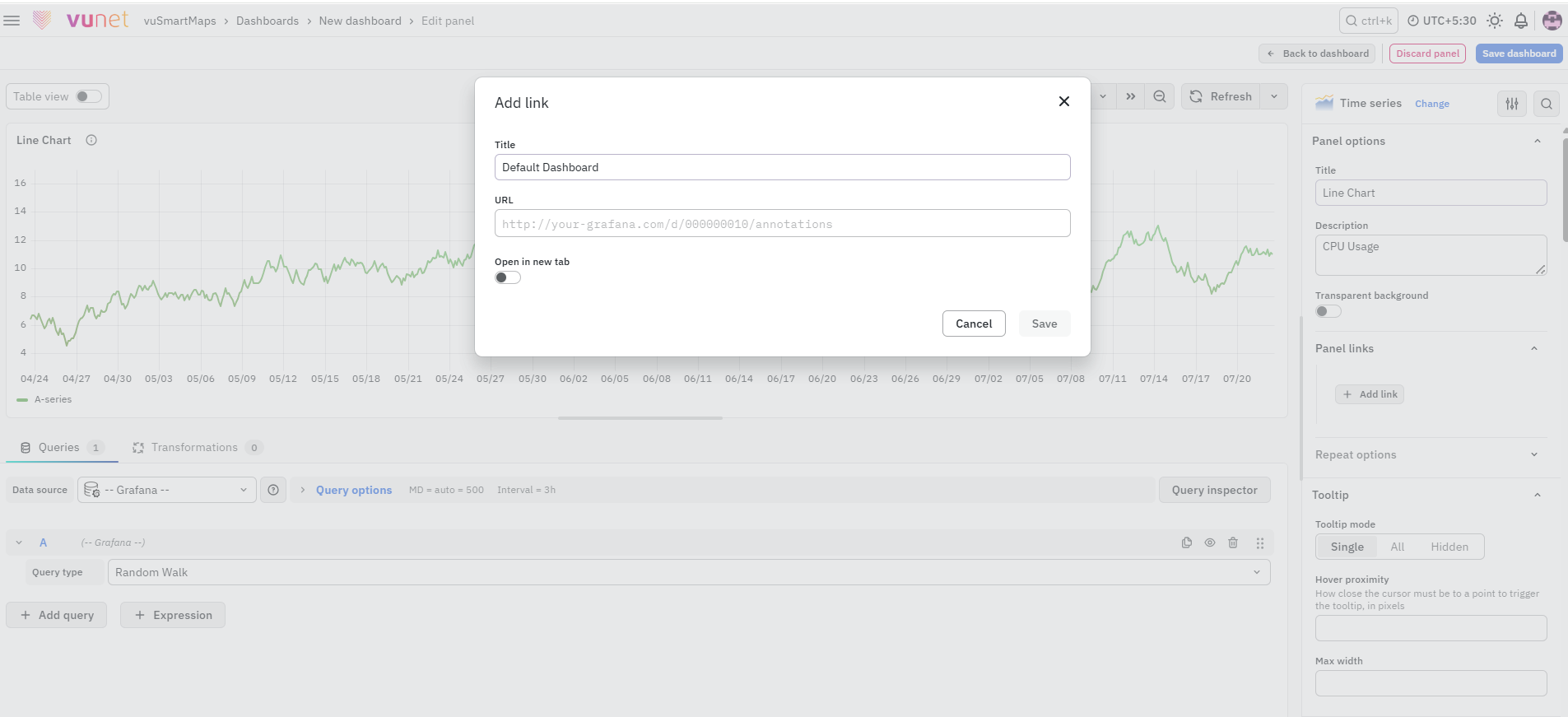

• Panel Link – Allows you to attach a link to another dashboard or external URL.

You can configure:

• Title
• URL
• Open in new tab

Once configured, click Save to apply the link.

When the panel is clicked, the link opens based on the selected behavior. This is useful for navigating to detailed dashboards or external resources.

Repeat Options

The Repeat Options section allows the panel to be repeated for each value selected in a dashboard variable.

• Repeat by variable: Select the required dashboard variable to create a separate panel for each selected value.
• Disable repeating: Keeps panel repetition disabled.

Repeated panels are not displayed while editing the panel. Return to the dashboard and refresh or reload it to view the repeated panels.

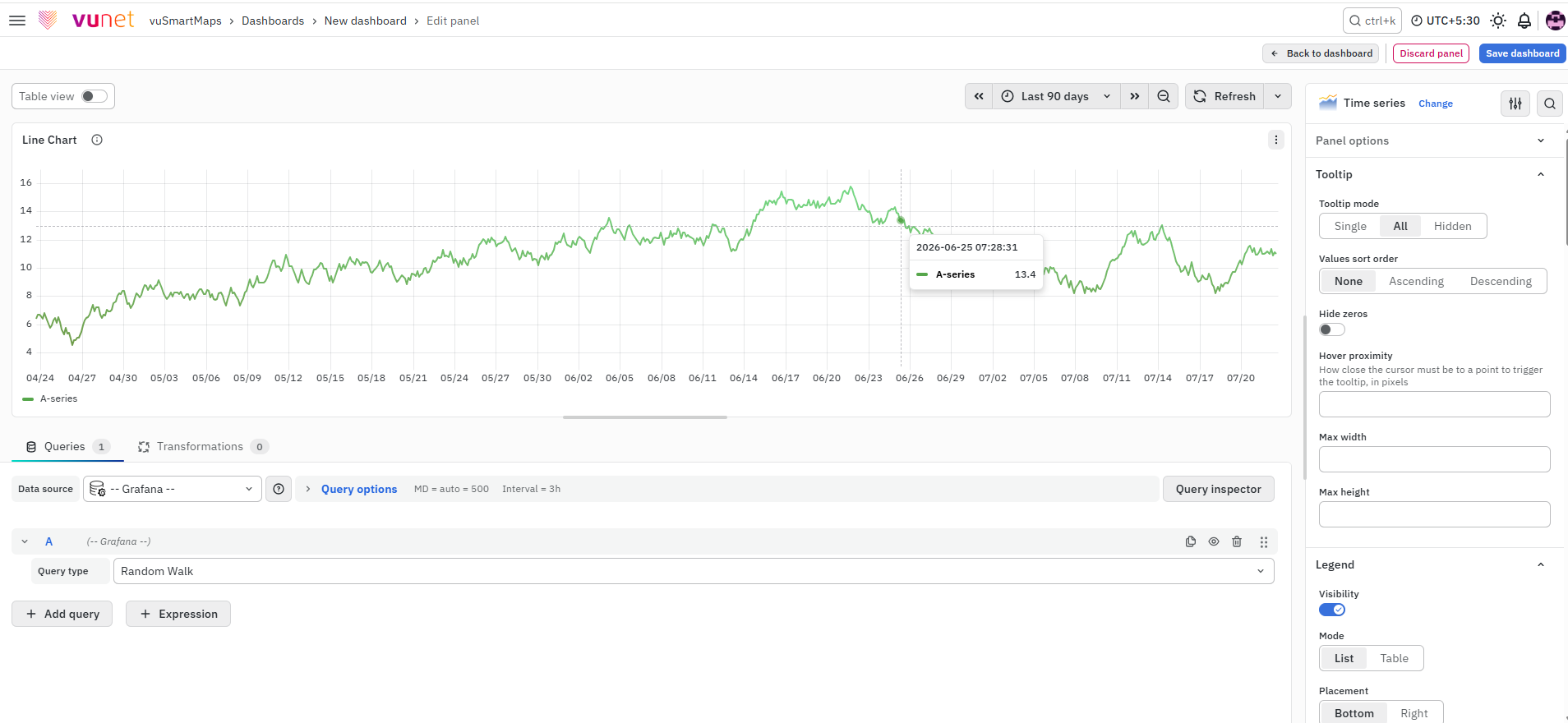

Tooltip

This section controls the information shown when users hover over the chart. Tooltip helps users inspect values at specific points without analyzing raw data. You can configure:

• Tooltip Mode
  • Single – Shows value for one data point.
  • All – Shows values for all series at that point.
  • Hidden – Disables tooltip.
• Hover Proximity
  • Defines how close the cursor must be to a data point to display the tooltip.
• Max Width
  • Controls the width of the tooltip box.

These settings improve data readability during analysis.

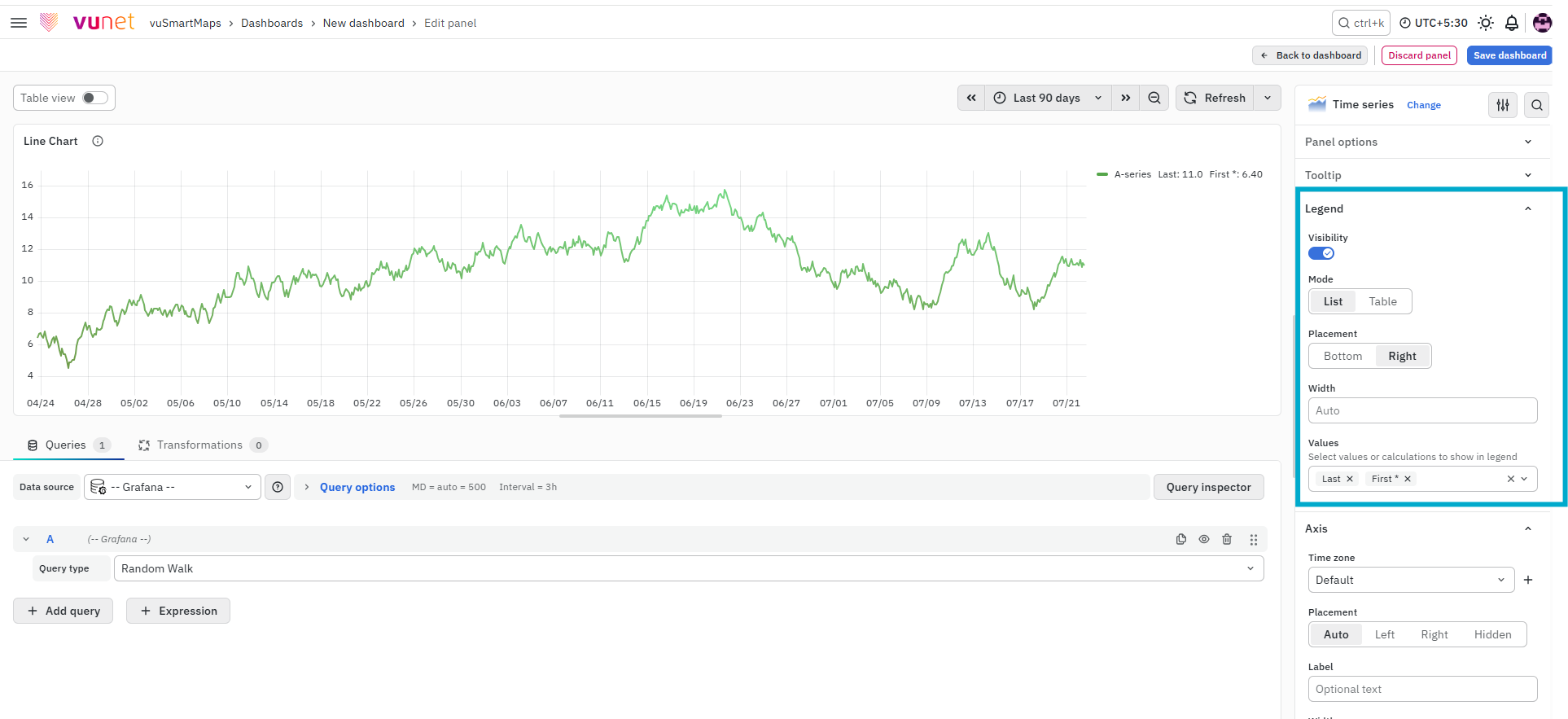

Legend

This section controls how series information is displayed in the chart. The legend helps users understand what each line represents. You can configure:

• Mode
  • List – Displays legend in list format.
  • Table – Displays legend in table format.
• Placement
  • Bottom
  • Right
• Width
  • Available when placement is set to Right.
  • Can be auto or manually defined.
• Legend Values
  • Last
  • First
  • Min
  • Max
  • Total

For example, selecting Last shows the latest value for each series.

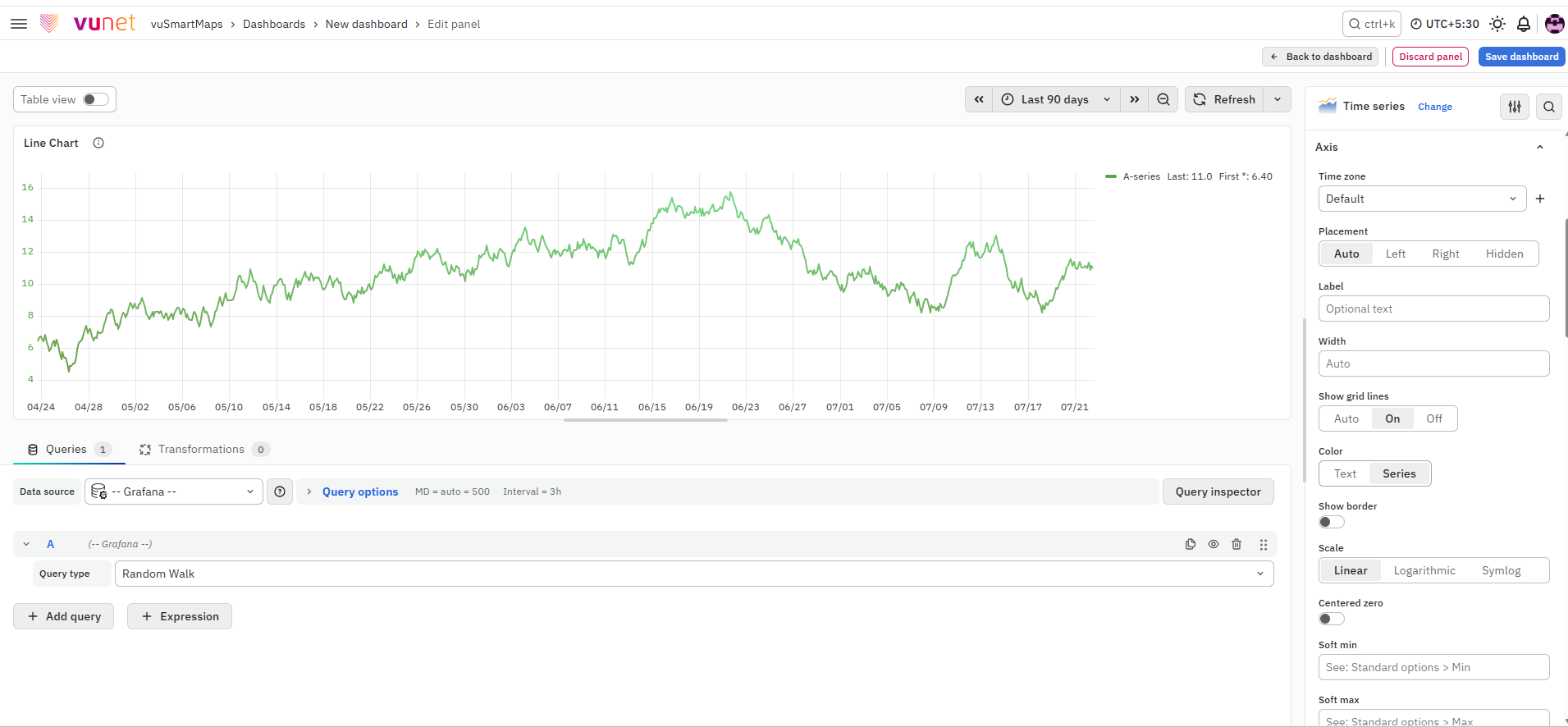

Axis

The Axis section is used to configure all axis-related settings of the chart. The Line Chart uses:

• X-axis for progression (typically time).
• Y-axis for metric values.

You can configure:

• Time Zone - Controls how time is displayed on the X-axis.
• Placement - Controls Y-axis position (Auto, Left, Right, Hidden).
• Label - Adds a label to the Y-axis.
• Width - Sets axis width.
• Show Grid Lines - Auto / On / Off.
• Color
  • Text – Uses panel text color.
  • Series – Uses series color.
• Show Border - Enables or disables axis border.
• Scale
  • Linear
  • Logarithmic
  • Symlog
• Centered Zero - Centers Y-axis around zero.
• Soft Min / Soft Max - Adjust visible Y-axis range without hard limits.

These settings help improve readability and interpretation of values.

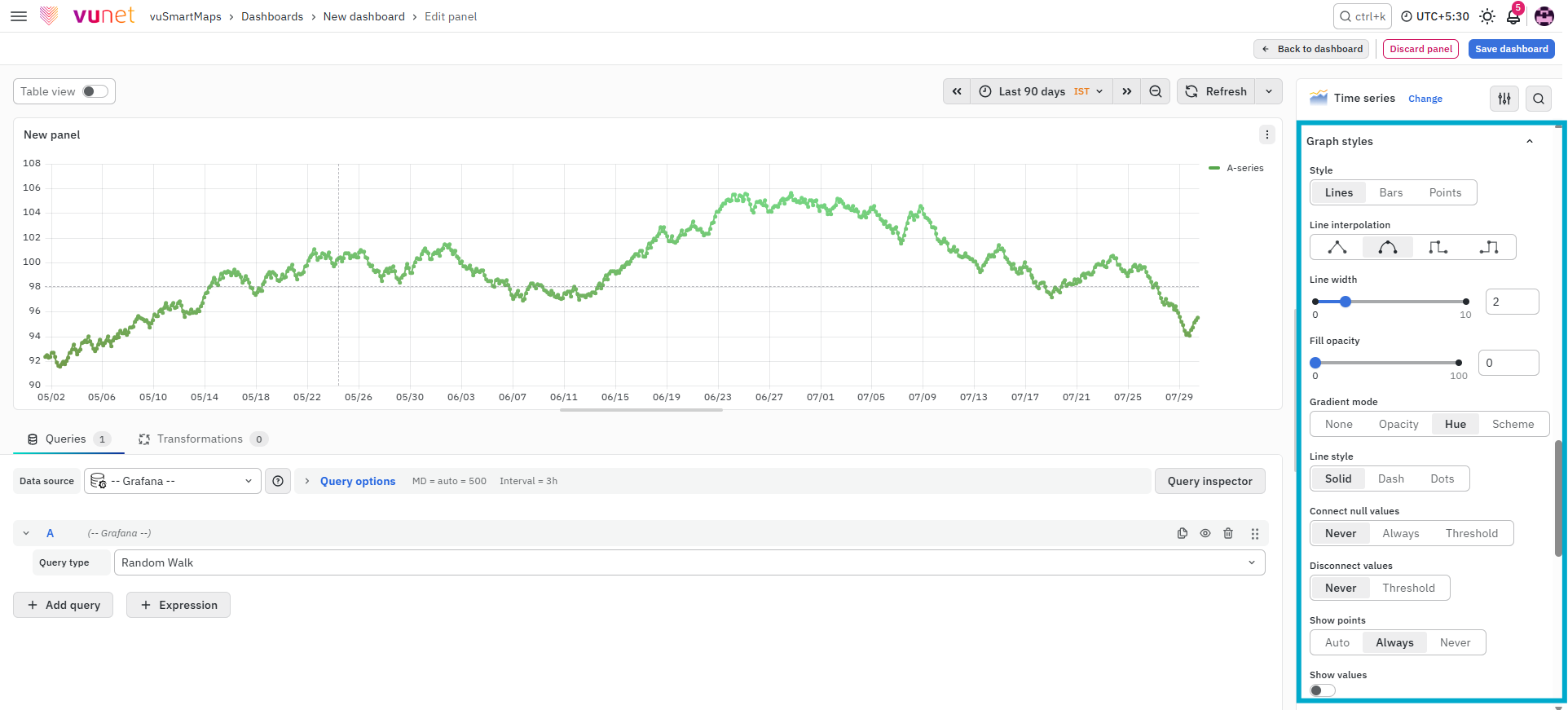

Graph Styles

This section is used to define how your time-series data is displayed in the chart. You can choose different styles based on how you want users to interpret the data. You can also use field overrides to combine multiple styles in the same graph.

Available styles include:

• Lines – Displays data points connected by lines. This is useful for showing continuous trends over time.

• Bars – Displays data as vertical bars. This is useful for comparing values at specific time intervals.

• Points – Displays only individual data points. This is useful when you want to highlight exact values without connecting them.

Line

This section controls how lines are displayed in the chart.

• Line Interpolation – Defines how data points are connected:
  • Linear – Points are joined using straight lines
  • Smooth – Curved lines for smoother transitions
  • Step before – Steps between points, with the point at the end of the step
  • Step after – Steps between points, with the point at the start of the step

Additional configurations include:

• Line width – Controls the thickness of the line
• Fill opacity – Controls how much the area under the line is filled
• Gradient mode – Defines how the fill color is applied
• Line style – Solid, dash, or dots
• Connect null values – Controls how missing values are handled in the chart
• Disconnect values – Sets a threshold above which values are visually disconnected
• Show point – Enables or disables display of data points
• Point size – Defines the size of data points
• Stack series – Displays multiple series on top of each other for cumulative analysis

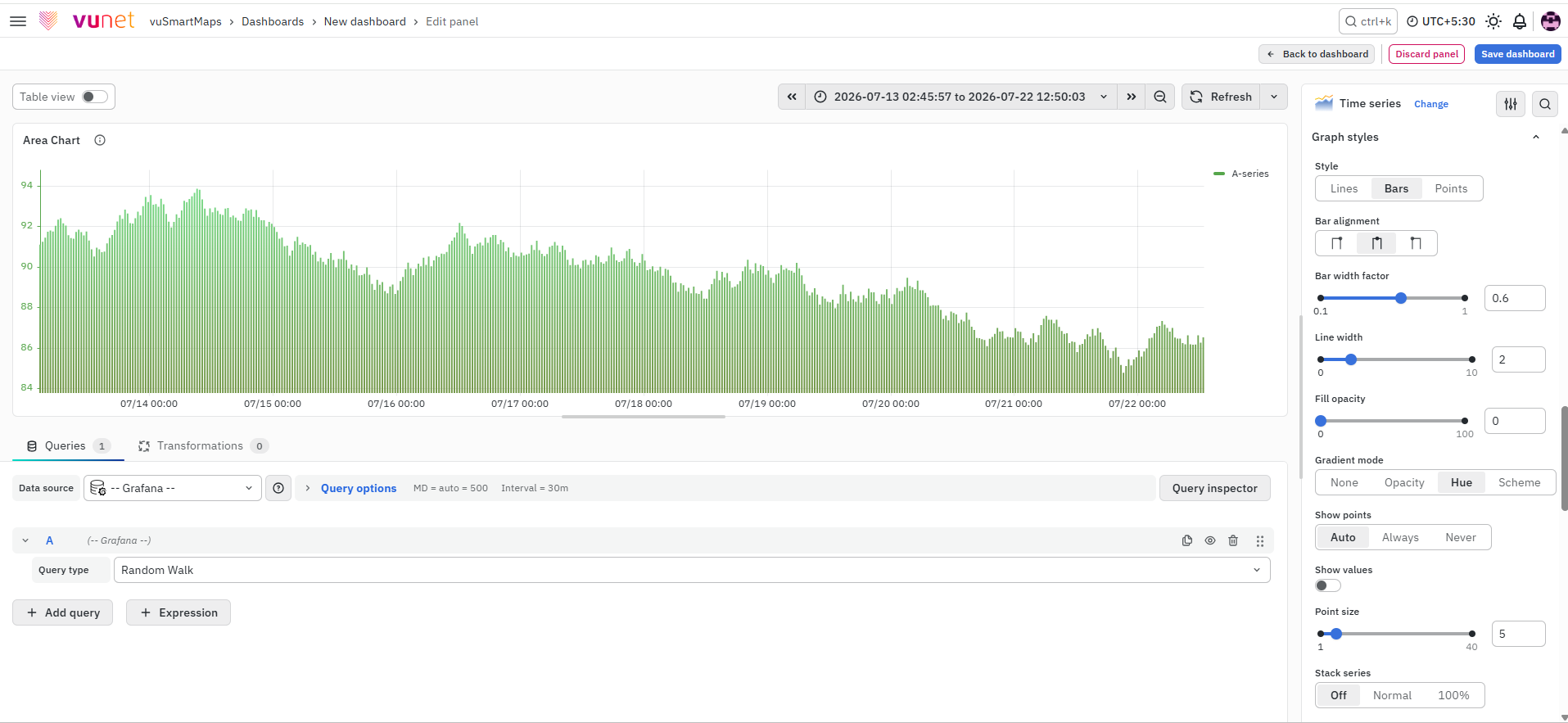

Bars

This section controls how bar-style visualization is displayed.

• Bar Alignment – Defines how bars are positioned relative to data points:
  • Before – Bar appears before the data point
  • Center – Bar is centered on the data point (default)
  • After – Bar appears after the data point

Additional configurations include:

• Bar width factor – Adjusts bar width relative to spacing between data points
• Line width – Controls outline thickness
• Fill opacity – Controls bar fill intensity
• Gradient mode – Defines color gradient
• Show point – Shows or hides data points
• Point size – Defines size of points
• Stack series – Stacks multiple series for cumulative view

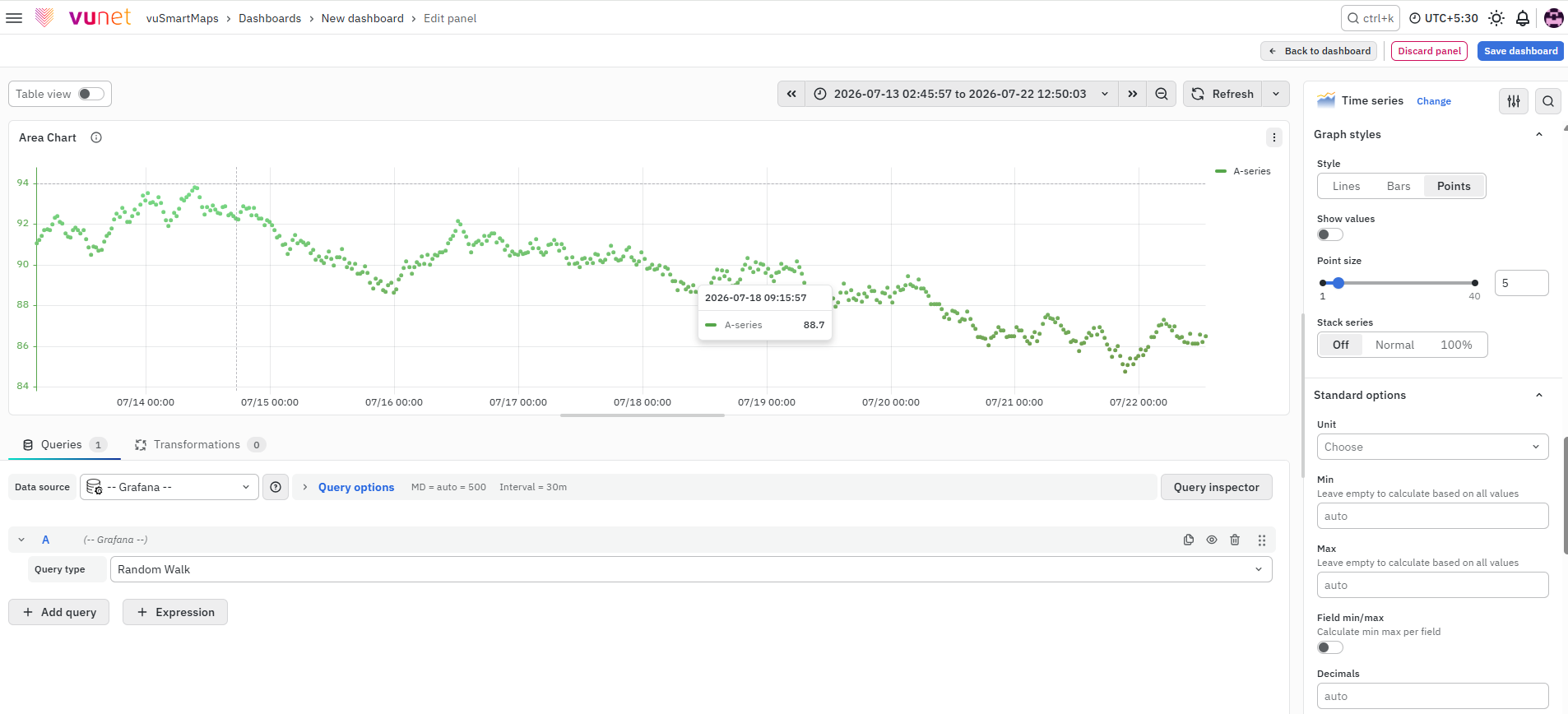

Points

This section controls point-based visualization.

• Point size – Defines the size of individual data points
• Stack series – Allows stacking of multiple series

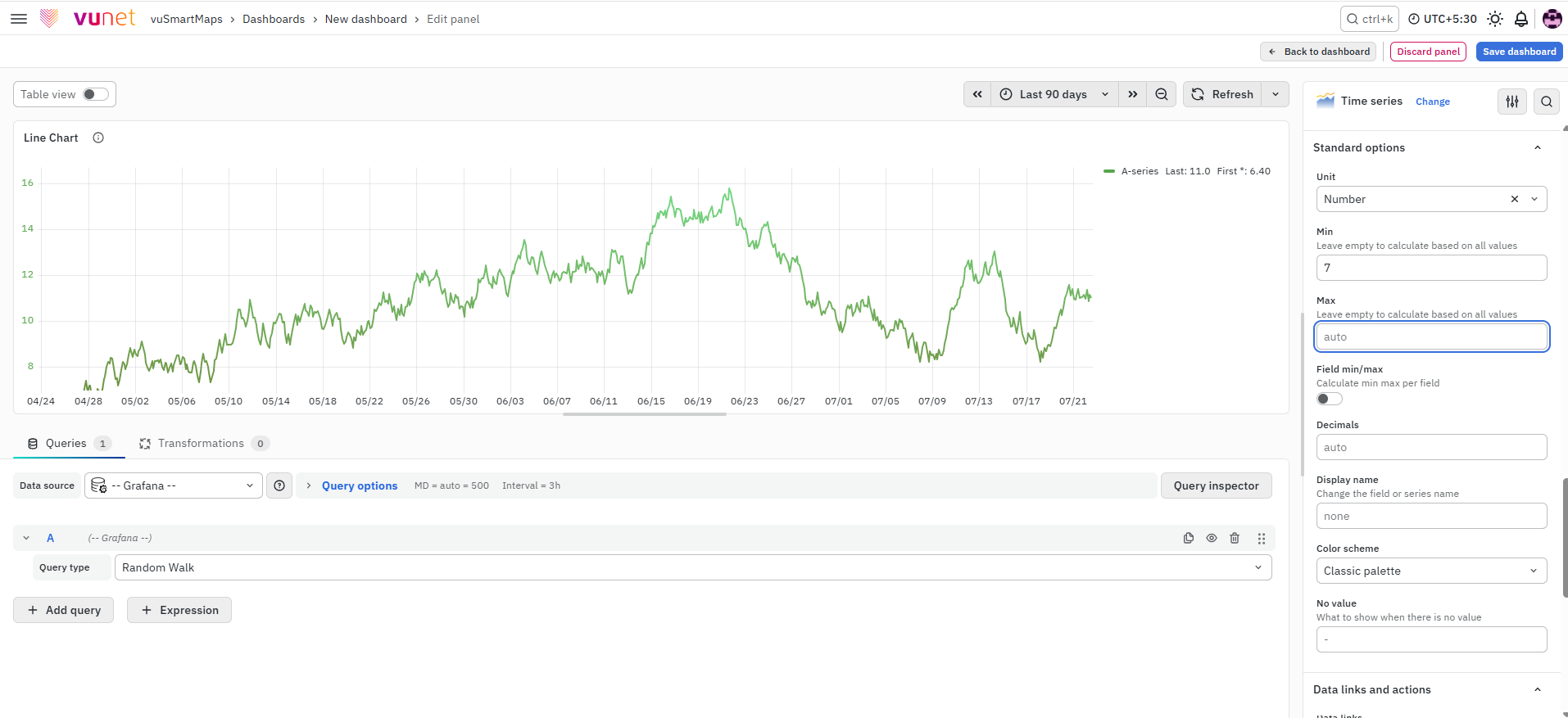

Standard Options

This section controls general display settings for the chart.

You can configure:

• Unit type – Defines how values are displayed (for example, ms, %, count).
• Min – Minimum value shown.
• Max – Maximum value shown.
• Field Min/Max - Calculates the minimum and maximum values separately for each field.
• Decimal – Number of decimal places.
• Display name – Name shown for the series.
• Color scheme – Defines chart colors.
• No Value – What to display when no data is available.

These settings help make the chart more meaningful and readable.

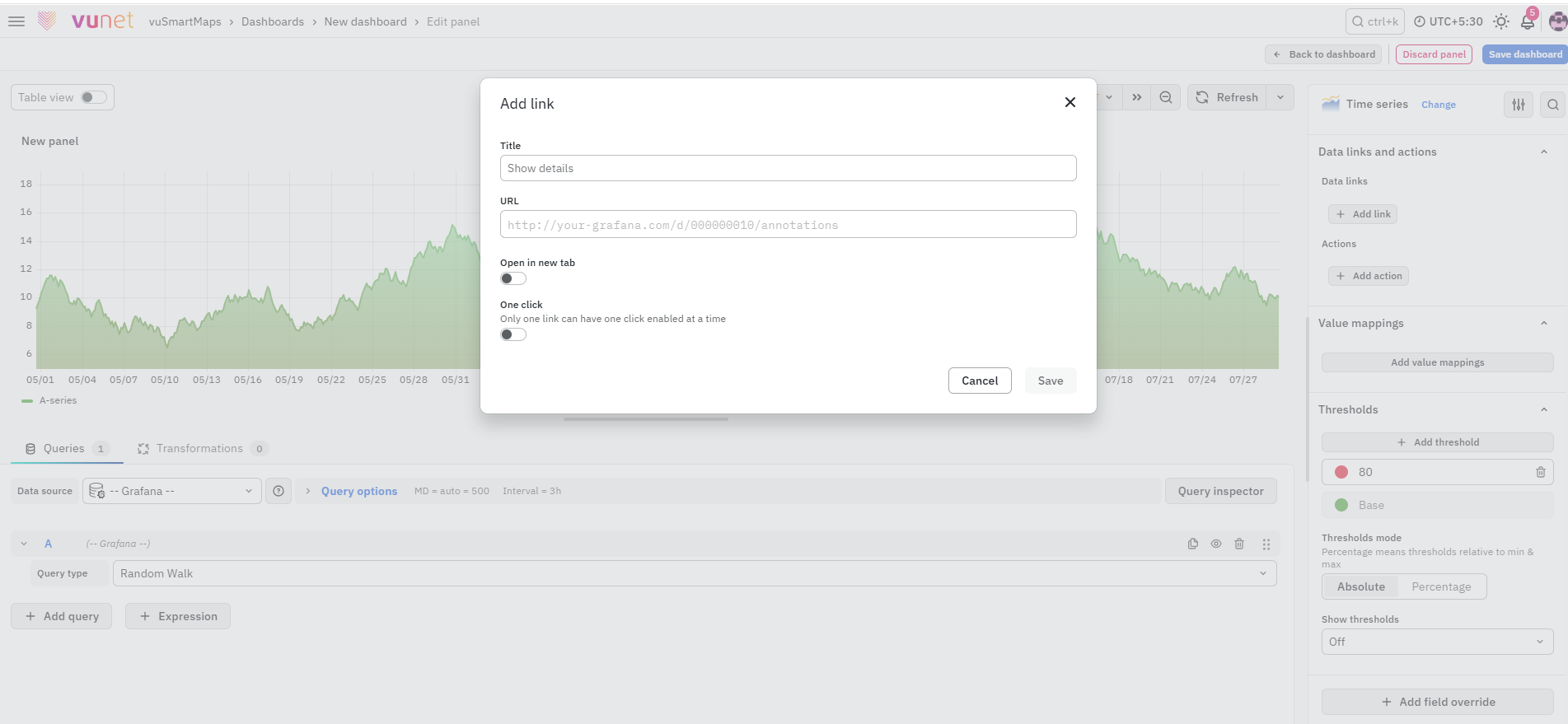

Data Links and Actions

This section allows you to attach links directly to the data points. When a user clicks on a data point in the chart, the configured link appears and can be opened.

You can configure:

• Title – Defines the name of the link.
• URL – Specifies the destination URL.
• Open in new tab – Opens the linked page in a new browser tab.
• One click – Opens the link directly when the data point is clicked. Only one link can have this option enabled at a time.

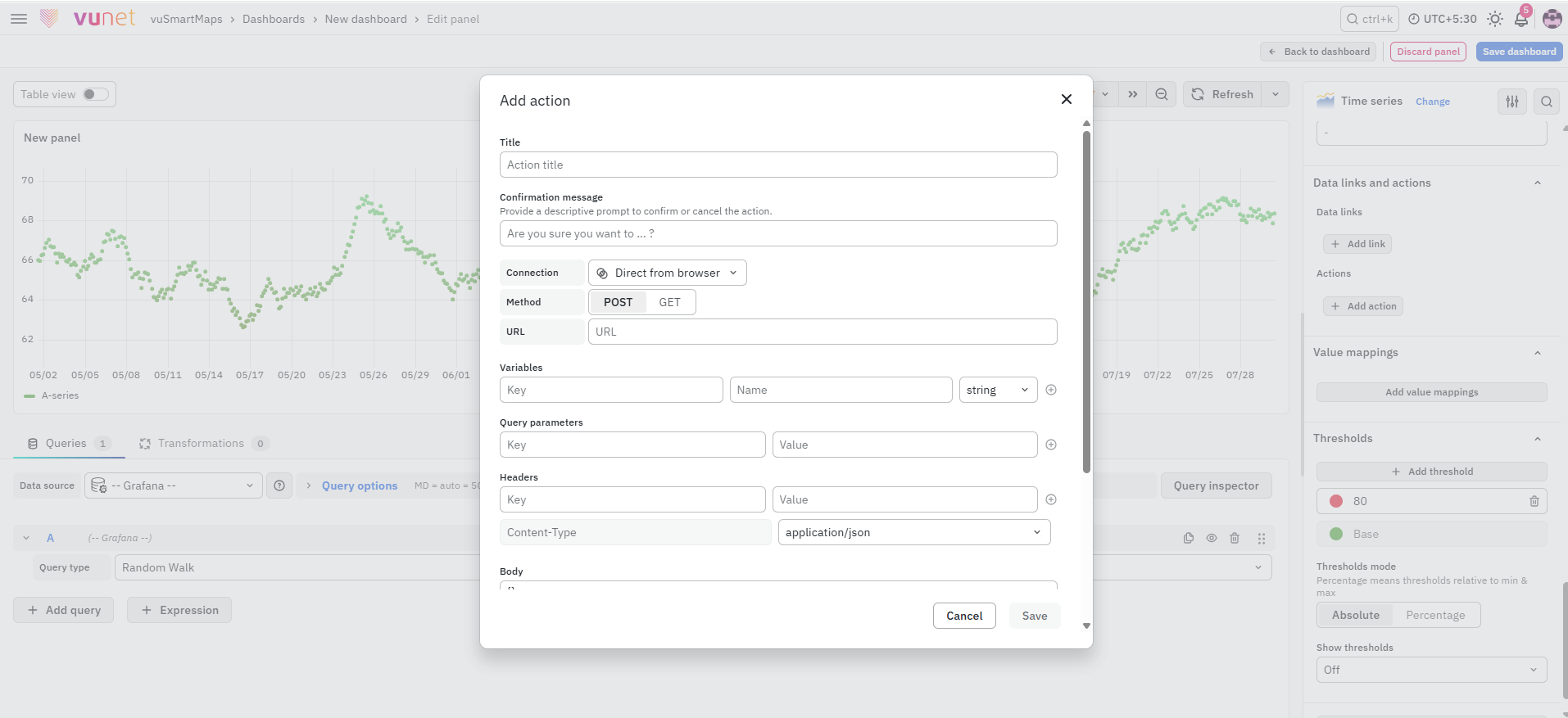

Actions

Actions allow users to trigger an HTTP request directly from a data point. You can configure:

• Title – Defines the name of the action.
• Confirmation message – Displays a message before the action is performed.
• Connection – Defines how the request is sent.
• Method – Select GET or POST based on the required action.
• URL – Specifies the endpoint to which the request is sent.
• Variables – Adds field or data values to the action.
• Query parameters – Adds key-value parameters to the request URL.
• Headers – Adds the required request headers.
• Body – Defines the request payload.
• Button style – Sets the colour used to display the action.

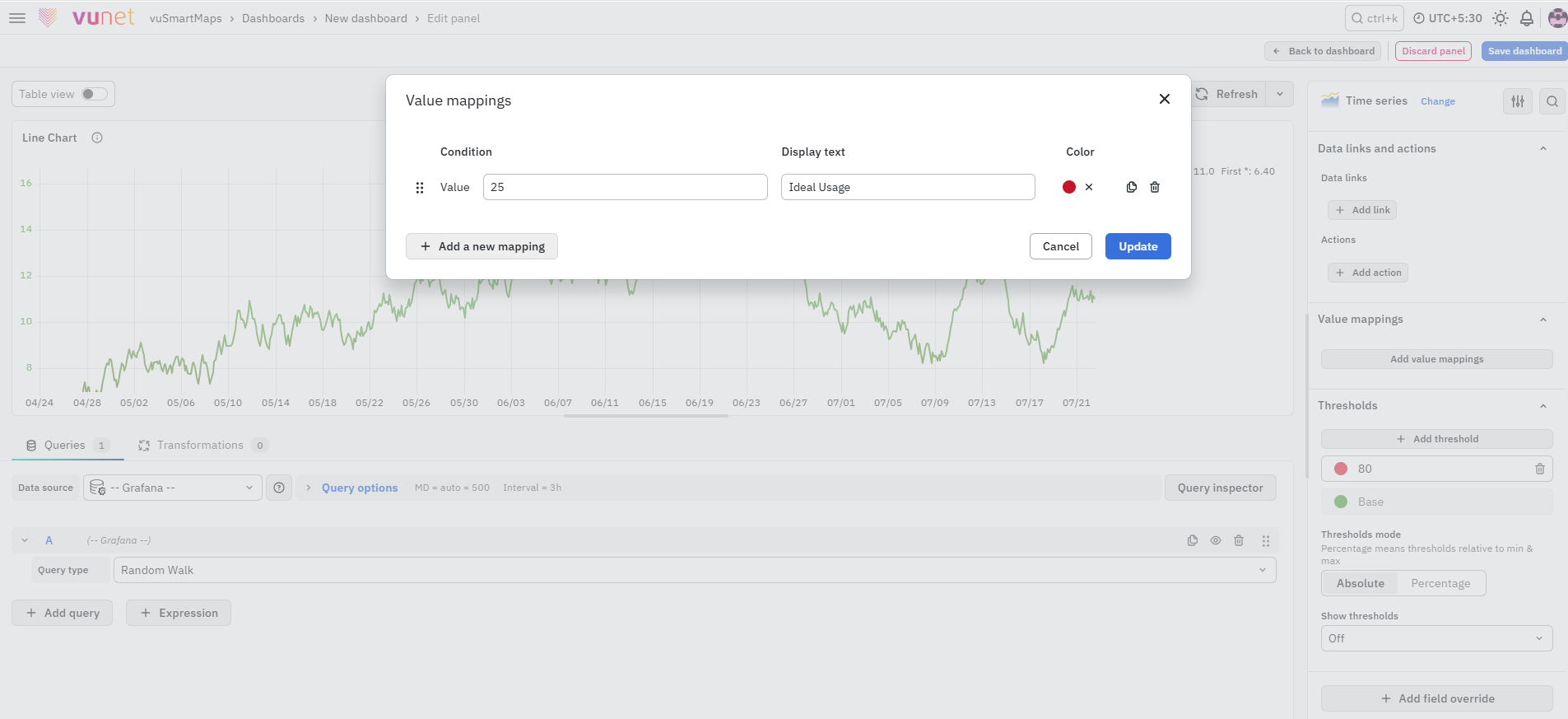

Value Mappings

This section allows mapping specific values to custom display text.

• When a defined value is detected, it is replaced with configured text.
• Matching values can also be highlighted using colors.

This improves readability when raw values are not user-friendly.

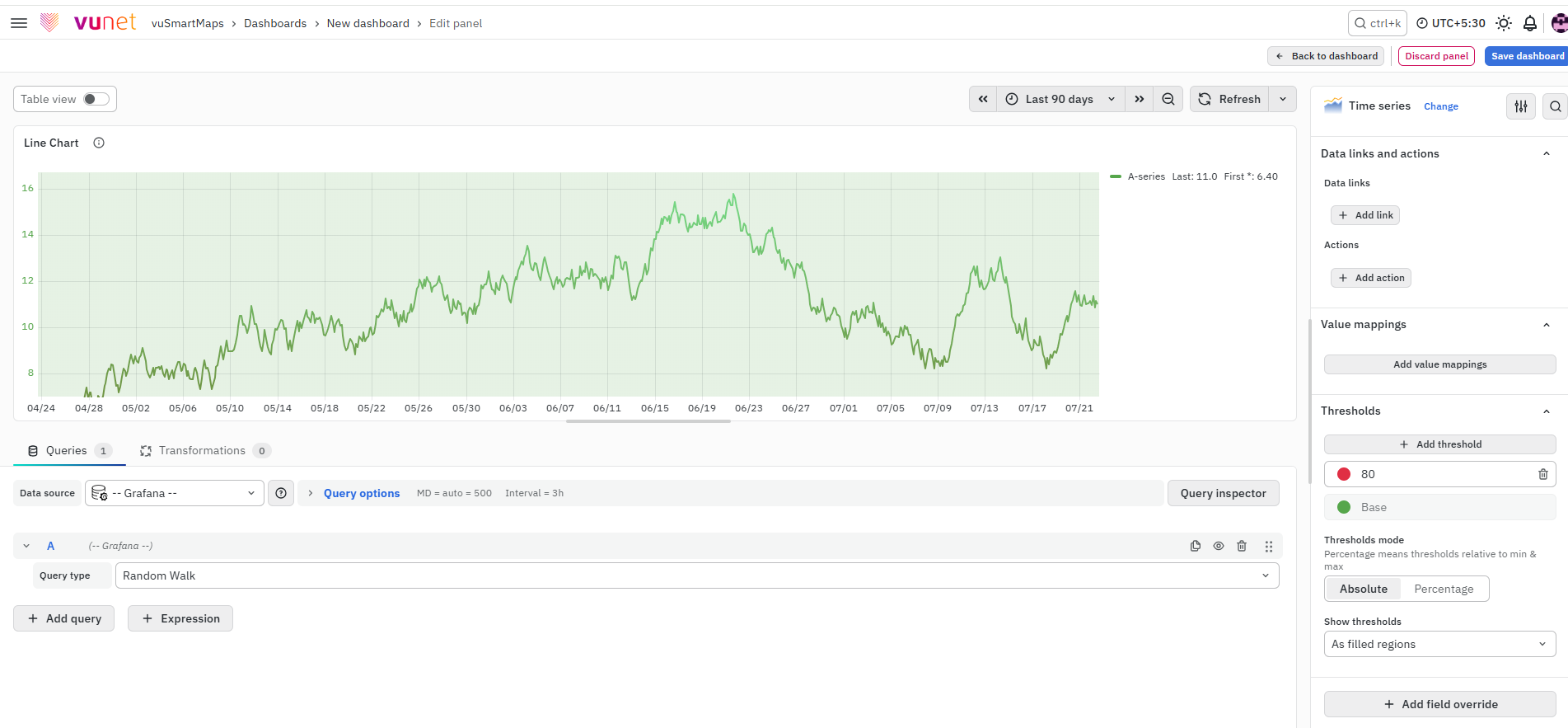

Threshold

The Threshold option is used to define value limits for the metric. You can configure thresholds to highlight specific ranges using colors. This helps users quickly identify when values cross expected limits and take immediate action.

• Show thresholds – Controls how thresholds are displayed on the chart:
• Off – Hides threshold indicators.
• As lines – Displays thresholds as solid lines.
• As lines (dashed) – Displays thresholds as dashed lines.
• As filled regions – Highlights threshold ranges using filled regions.
• As filled regions and lines – Displays filled regions with solid threshold lines.
• As filled regions and lines (dashed) – Displays filled regions with dashed threshold lines.

For example, for CPU usage:

• Yellow → Indicates moderate usage (for example, value = 20)
• Red → Indicates high usage (for example, value = 30)

This helps users quickly detect threshold breaches and take immediate action.

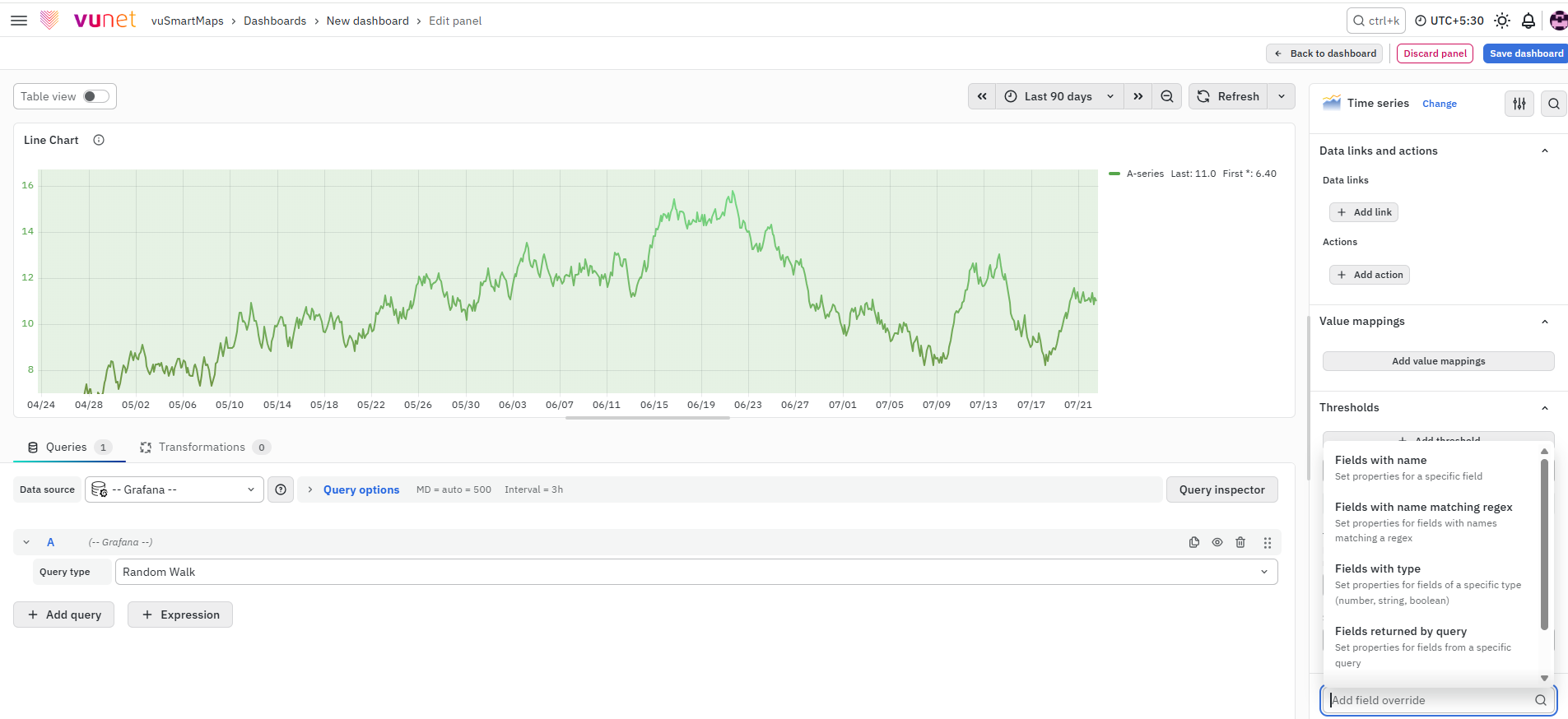

Add Field Override

This section allows you to override settings for specific fields. Overrides are used when different fields require different configurations. You can apply overrides based on:

• Name
• Matching Regex
• Type
• Query
• Values

Steps:

1. Select the field type.
2. Select the field.
3. Select the override property.
4. Configure the property.

You can add multiple overrides. Selected fields will use overridden settings, while others continue using default configuration.

Step-by-Step Instructions

Follow these steps to create and configure a Line Chart panel:

1. Navigate to the Dashboard section and create a new panel.
2. Configure the query:
   • Select the appropriate data source
   • Define the query to fetch the required data
     (Refer to Dashboard Basics > Query)
3. On the right side of the screen, select Visualization → Time series.
4. In Panel Options, enter the panel name and description. Add a panel link if required.
5. Configure Tooltip settings:
   • Select Tooltip mode (Single, All, or Hidden)
   • Set Hover Proximity
   • Set Max Width if required
6. Configure Legend:
   • Choose mode and placement
   • Select legend values
7. Configure Axis settings:
   • Set time zone
   • Configure axis placement and label
   • Adjust scale and limits
8. Configure Standard Options:
   • Set unit type, min/max values, decimals, and color scheme
9. Configure Data Links and Actions (if required):
10. Configure Value Mappings (if required):
    • Map specific values to custom text
    • Apply color highlighting for matching values
11. Configure Thresholds:
    • Define threshold values
    • Select display mode (lines or filled regions)
    • Assign colors to different ranges
12. Configure Field Overrides (if required):
    • Click Add Field Override
    • Select field type (Name, Regex, Type, Query or Values)
    • Select the field
    • Select override property
    • Configure the property
    • Repeat if multiple overrides are needed
13. Save the panel. You can edit the panel later if required.

What Happens After the Steps

Once the panel is saved:

• The Line Chart appears on the dashboard.
• Data is displayed as connected lines.
• Tooltip shows values on hover.
• Legend shows series details.
• Thresholds highlight important values.
• Links and overrides work as configured.
• The panel can be edited anytime.

Tips / Best Practices

• Use Line Charts for time-based monitoring.
• Keep panel names clear and meaningful.
• Use thresholds to detect issues quickly.
• Use legend values like Last for real-time monitoring.
• Avoid too many lines in one chart.
• Use field overrides to differentiate important metrics.

Troubleshooting

1. Issue: Line Chart not displaying correctly.

   • Possible cause: Issue with query or data source.
   • Solution:
     • Verify that the query is correctly configured.
     • Ensure the correct data source is selected.
     • Check if the query is returning data.

2. Issue: No data visible in the Line Chart.

   • Possible cause: No data available for the selected time range.
   • Solution:
     • Check the global time selector.
     • Ensure data exists for the selected duration.
     • Try expanding the time range.

3. Issue: Line Chart appears empty or flat.

   • Possible cause: Incorrect Min/Max configuration or very small value variation.
   • Solution:
     • Verify Min and Max settings in Standard Options.
     • Adjust Soft Min and Soft Max in Axis settings.
     • Ensure correct metric is selected.

4. Issue: Tooltip not appearing on hover.

   • Possible cause: Tooltip mode set to Hidden.
   • Solution: Change Tooltip mode to Single or All.

5. Issue: Legend not visible or incorrect.

   • Possible cause: Incorrect legend configuration.
   • Solution:
     • Check legend mode (List or Table).
     • Verify legend placement (Bottom or Right).
     • Ensure legend values are selected.

6. Issue: Threshold colors not applied correctly.

   • Possible cause: Incorrect threshold configuration.
   • Solution:
     • Verify threshold values.
     • Check threshold display mode.
     • Ensure correct color mapping is applied.

7. Issue: Data link not working .

   • Possible cause: Incorrect URL configuration.
   • Solution:
     • Verify URL entered in Data Links.
     • Check if “Open in new tab” option is configured correctly.

8. Issue: Field override not applied correctly.

   • Possible cause: Incorrect field selection or condition.
   • Solution:
     • Verify selected field (Name, Regex, Type, Query).
     • Ensure override property is correctly configured.

FAQs

What is a Line Chart, and when should I use it?

A Line Chart is a visualization used to display how values change over time by connecting data points with lines.

• Best used for time-based or sequential data
• Useful for tracking trends such as latency, CPU usage, or transaction volume
• Recommended when you want to compare multiple series over time

How do I create a Line Chart in the dashboard?

• Create a new dashboard panel
• Configure the query with the appropriate data source
• Select Time series as the visualization type
• Follow the configuration steps in the Line Chart setup

What does the tooltip show in a Line Chart?

• Tooltip displays data values when hovering over the chart
• It can show a single value or values for all series at a point
• Can be configured as Single, All, or Hidden

How do I customize the legend in a Line Chart?

• Go to the Legend section
• Choose mode (List or Table)
• Set placement (Bottom or Right)
• Select values such as Last, Min, Max, etc.

How can I highlight critical values in a Line Chart?

• Use Threshold settings
• Define value ranges and assign colors
• Helps identify warning or critical conditions quickly

What are field overrides, and when should I use them?

• Field overrides allow applying different settings to specific fields
• Useful when multiple series require different configurations
• Can be applied based on name, type, regex, or query

How can I add a link to another dashboard from my Line Chart?

• Use Panel Link to attach a link to the panel
• Use Data Links to attach links to chart data
• Configure title, URL, and open behavior

What should I do if values are not displayed correctly?

• Check Standard Options (Min, Max, Decimal)
• Verify selected fields
• Ensure correct unit type is applied
